S Series (Triple)

Screw Pumps


S Series (Triple)
Maag Industrial Pumps, part of Pump Solutions Group (PSG)

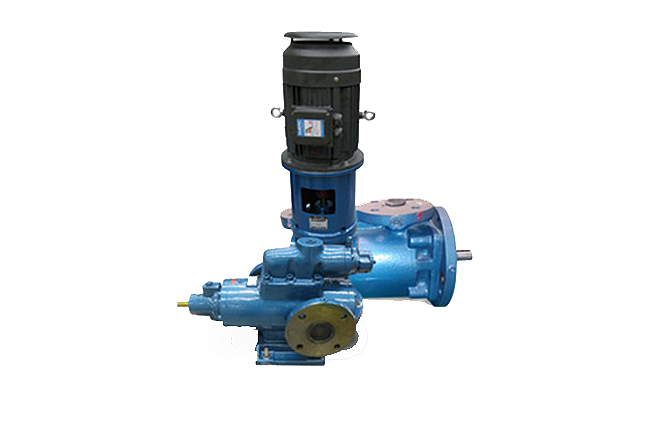

Maag S Series Triple Screw Pumps are positive displacement rotatory pumps which adopt a cycloid profile of meshing principals at the screw profile. The power spindle is driven by a motor and the idler spindles are driven by fluid hydraulic power in an intermeshing screw groove. Hydraulic force on the spindle is balanced by the hydraulic load on the balanced piston. These pumps are ideal for handling smooth constant flow across a wide range of viscosities, temperatures and pressures without solid content. Three models are available.

VIEW FULL PROFILE

Specs

Key Specifications
Model: 3N Capacity: 10-5300 L/min, Diff . Pressure ≤40 bar
Model: 3M Capacity: 10-2200 L/min, Diff . Pressure up to ≤100 bar
Model: 3PF Capacity: 2-130 L/min, Diff . Pressure up to ≤580 bar
