Endress+Hauser

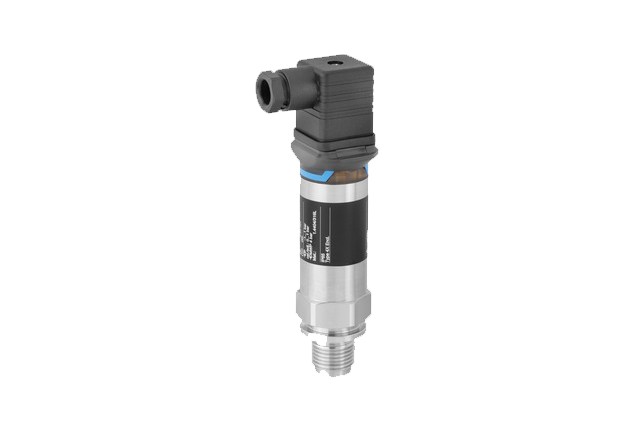

Cerabar PMP11

Pressure Transmitter



The Cerabar PMP11 is the most price-attractive compact pressure transmitter in its segment. It features a piezo-resistive sensor and is able to measure gauge pressure from 400mbar up to 40bar. The PMP11 is designed to withstand the conditions in the process industry with the use of high quality materials like 316L. It can be used for standard applications in the process industry.

VIEW PROFILE

Specs

Key Specifications
Measuring Principle Gauge pressure
Characteristic Cost-effective pressure transducer, piezoresistive sensor with metallic measuring diaphragm
Supply voltage Analogue output: 10…30 VDC 0...10 V output: 12…30 VDC
Reference Accuracy 0.5%
Long term stability 0.2% of URL/year
Measuring cell 400 mbar...+40 bar (6 psi...+600 psi)
Max. overpressure limit 160 bar (2400 psi)
