Endress+Hauser

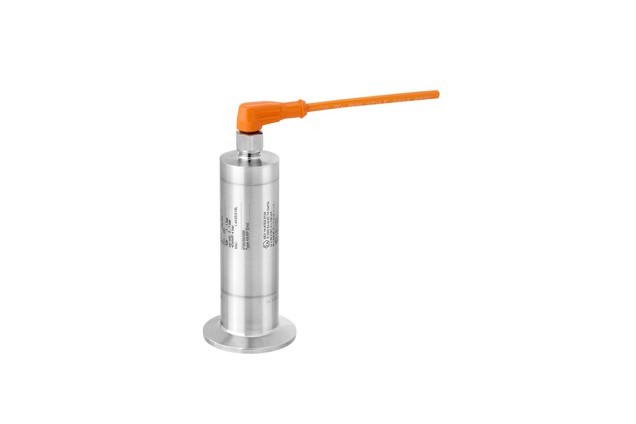

Cerabar PMP23

Pressure Transmitter


Cerabar PMP23

The Cerabar PMP23 is a price-attractive and compact absolute or gauge pressure transmitter. The piezo-resistive measuring cell with flush-mounted 316L diaphragm was designed for applications in the hygienic industry. PMP23 offers various EHEDG and 3-A certified hygienic process connections, materials with FDA conformity, EG1935/2004 conformity, IP69 protection class as well as hazardous area certificates. The device can be delivered with customized measuring ranges up to 40bar.

VIEW PROFILE

Specs

Key Specifications
Measuring Principle Absolute and gauge pressure
Characteristic Cost-effective pressure transducer, piezoresistive sensor with metallic measuring diaphragm for hygienic applications
Supply voltage 10…30 VDC
Reference Accuracy 0.3%
Long term stability 0.2% of URL/year
Measuring Principle 400 mbar…+40 bar (6...+600psi)
Max. overpressure limit 160 bar (2400 psi)
