SignalFire Wireless Telemetry

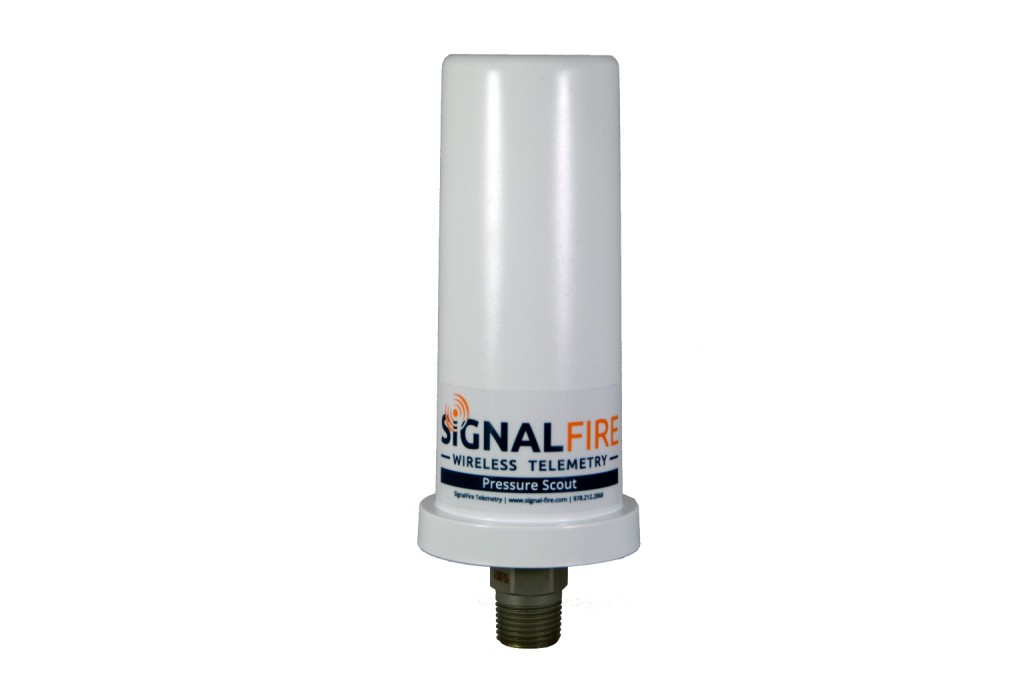

Pressure Scout

Intrinsically Safe Wireless Pressure Sensor


Pressure Scout

Specs

Key Specifications
Enclosure NEMA 3X rated for outdoor use
Power “D” Cell Lithium battery pack. Field replaceable. Class 1 Division 1 certified. Optional Class 1 Division 1 solar/battery module
Battery Life 1–10+ years depending on reporting frequency. Battery Life Example: 5-second pressure sample interval with a 1-minute reporting interval = 6.5 years
Data Interface Wireless – available as Modbus registers at Gateway
Data Update Rates User-selectable. 5 seconds to 1 hour, typical
Radio Power 40 mW
Receive Sensitivity -109 dB
Radio Frequency 902–928 MHz, FHSS, licensefree ISM Band Compliant with FCC Part 15 and Industry Canada
Range Up to 1/2 mile
