Eccentric disc pumps incorporate variety of upgrades for oil and gas use

Eccentric disc pumps incorporate variety of upgrades for oil and gas use

Company info

ZI la Plaine de Isles, 2 rue des Caillottes
Auxerre,
FR, F-89000

Website:
mouvex.com

Read more

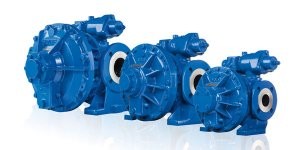

Mouvex A Series eccentric disc pumps, known for their reliability, are now available in ductile iron construction – a critical upgrade as more companies in the oil and gas industry are integrating ductile iron systems into their processes.

Additional upgrades to Mouvex’s A Series pumps includes the implementation of ISO PN16/ANSI 150 flanges while offering both Mouvex or standardized mechanical seals, which helps expedite installations regardless of location.


A Series pumps also doubled its maximum differential pressure from 5 bar (72 psi) to 10 bar (145 psi), enabling it to be used in the safe transfer of viscous, non-lubricating, volatile or delicate fluids in a variety of oil and gas applications.

Mouvex A Series positive displacement pumps have maximum speeds to 600 rpm, maximum flow rates to 55 m3/h (242 gpm), as well as suction and discharge ports from 1-1/2 through 4 inches in size.

These pumps enable product transfer up to 80 degrees C (176 degrees F), and feature self-priming and run-dry capabilities while maintaining constant flow rates regardless of changes in viscosity and pressure. Mouvex A Series pumps also maintain their initial performance over time and are ATEX-certified for use in potentially dangerous environments with the ability to run-dry for up to six minutes.
