Analyzing the analyzer – metrology in natural gas pipelines
Natural gas companies turn to NIST Traceability to end disputes on H2S measurements
Upstream, you have producers and gas processors that deliver natural gas to fill the growing demand for the clean-burning fuel. Downstream, you have hundreds of miles of pipeline infrastructure to deliver the gas to market.
In between, at the points of custody transfer, are the multitudes of analyzers which ensure that contaminants such as H2S are low enough to safely protect the pipelines and the public. This critical measurement prevents corrosion which in the worst case can lead to pipeline rupture.
And if the supplier and user each use a different analyzer? Well, there is a saying in the natural gas industry; “if you have one analyzer you have a measurement, if you have two analyzers, you have an argument.”
“Sometimes you will have a dispute when two different companies are using two different brands,” observes Hunter Brown, a measurement control supervisor for Access Midstream. “The readings can be 2 ppm apart and that can mean a lot if the third party is reading 7 and the supplier is reading 5; in fact, it can result in a shut-in.”
The reason accuracy is so important is simple… money. Neither supplier nor buyer can afford to halt any part of the billions of cubic feet of natural gas consumed on a daily basis.
If two analyzers show different readings in the same line, who wins the argument? Whoever can demonstrate the most accurate analyzer.
The final word
Fortunately there is a final word in accuracy at the National Institute of Standards and Technology (NIST), in fact it is the final word in all metrology. If an analyzer is calibrated with highly accurate gas, and that gas can demonstrate NIST traceability, the argument is over.
“Both calibration and validation are important. If either one is wrong, it’s not going to read right,” says David Bromley, a natural gas TA for BP. “If I get that test gas in and it is reading 3 instead of 4 ppm, the question is… is it the test gas or the analyzer? One of them has to be wrong.”
Increasingly producers and processors are demanding greater accuracy through NIST traceability and that has led analyzer manufacturers to respond.

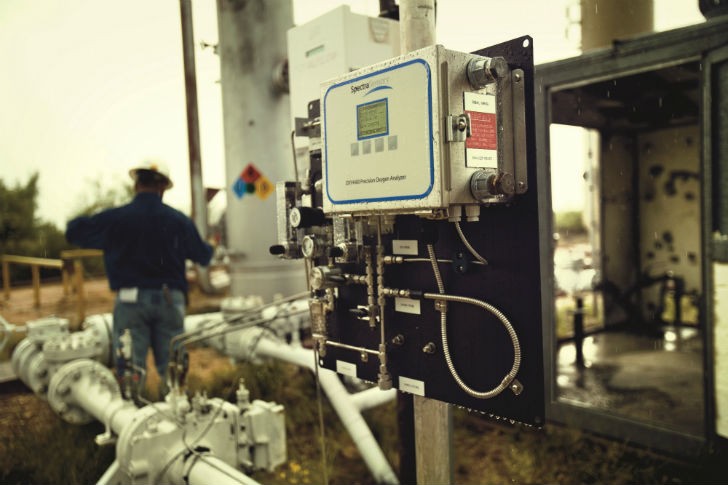

Houston-based SpectraSensors developed the first Tunable Diode Laser (TDL) analyzer to measure impurities such as hydrogen sulphide in pipelines. On its own, the company soon realized that due to the inherent uncertainties in any measurement, a genuine accuracy claim must trace back to the metrology gatekeeper, NIST.
Originally SpectraSensors used the same method other analyzer companies used, they simply ordered a calibrated gas bottle from a reliable source and used it to calibrate their analyzers at the factory. Once calibrated, the unit was good to go. However, the company discovered that not all bottles are created equally and no one traced their standards back to NIST. The problem was the company found a higher degree of uncertainty in the bottles than the manufacturers claimed, so they went looking for a company that would collaborate with them to solve the problem.
That company turned out to be Air Liquide. “H2S is a notoriously difficult component to blend into a gas mixture and have it remain stable,” admits Air Liquide chief technical officer Dr. Stephen Miller. “And that problem becomes progressively worse as concentrations become lower.
“In fact there are anecdotal stories about chain of custody/monetary valuation arguments concerning the quantity of H2S in a pipeline based on unresolved differences in the calibration of H2S analyzers brought about by hidden discrepancies in the certified H2S values on different calibration gas cylinders. Concentrations of the gas bottles can be a lot more variable than end users realize.”
“Both calibration and validation are important. If either one is wrong, it’s not going to read” David Bromley
Both companies realized it was going to take a major commitment of time and money to build the traceability path back to NIST. In the end, however, the reward would be worth it.
“SpectraSensors showed us we could differentiate ourselves if we could solve this problem and their analyzer would have a strong case in any dispute.
The H2S concentration needed in the bottles was 4 and 16 ppm, each of which had to be in a matrix gas of methane and nitrogen and everything had to be NIST traceable. The Air Liquide answer was “dual certification”.
A common industry method to produce H2S mixtures is to dilute H2S down to 4 ppm, analyze it in a lab and then put a C of A on it. But that process has accuracy risks, even if done with NIST reference standards, because there is no second check of the actual concentration and no indication of long-term stability. The Air Liquide dual certification process, which employs gravimetric and analytical procedures, both with full NIST traceability, requires these two independent methods come to the same result and agree with each other within close statistical boundaries.
“First, we determine the concentration and the accuracy of the mixture by mass alone using NIST primary references and stringent statistical methods,” adds Dr. Miller. “Then, we analyze that same cylinder in the laboratory using instruments calibrated with NIST SRMs (standard reference materials). When these two independent processes agree with one another, we have high confidence in the certified H2S concentration, and we have the required unbroken chain of comparisons within our measurements all the way back to NIST.”
How does NIST know their values are correct? It’s a three-step process that includes world-wide verification.
“When we create primary standards we design the procedure to develop a suite of standards that define a concentration range we wish to use to support for customers,” says Dr. Franklin Guenther of NIST. “To verify the primary standards, we analyze the suite on an instrument with a well-defined instrument function, such as gas chromatography, which has a linear function. If all the primary standards fall on the linear response function of the instrument we are confident that the standards are self-consistent and no blunders have occurred in the filling process. We then analyze them against past primary standards, and if they agree we are confident that our standards are historically consistent and that our measurement system has not shifted over time. Our third method of verification is to measure them against other National Metrology Institutes (NMI) in a bilateral, or key, comparison.”
The bottom line for everyone in the measurement business is that NIST is the standard, NIST traceability trumps all debates.
Total measurement system
Dr. Miller sees it as a total measurement system. “If you truly care about the H2S content in the pipeline, then all elements of your measurement system must be optimized. The sampling/conditioning lines, the analyzer and the calibration gas must be free of errors and all work together as an integrated system. If you are not using a total measurement system then you risk making a less accurate measurement which leaves you susceptible to economic losses.”
