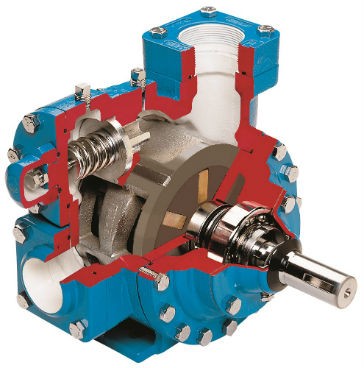

Four-Inch Sliding Vane Pump

Four-Inch Sliding Vane Pump

The four-inch XLW4A Model Sliding Vane Pump is an extension of Blackmer’s XLW Series Sliding Vane Pump line, which was introduced in 1978.

XLW Series pumps have been designed to perform in the handling and transfer of a variety of abrasive liquids where wear-resistance is critical to pump operation.

XLW Series pumps have also shown to be successful in applications such as vertical and horizontal bead mills, solvent recovery, tank-bottom recirculation, heattreater supply, enhanced oil recovery, and crude- or hot-oil transfer.

As with all XLW Series pumps, the XLW4A model features hardened rotor and shaft, liner, end discs and vanes for long life and optimized wear-resistance. These hardened internal parts allow the pump to be used with liquids featuring suspended abrasive particles up to 250 microns in size and at a concentration up to 25 percent.

The XLW4A model can produce flow rates up to 190 gpm (719 L/min) at speeds to 350 rpm; handle viscosities to 20,000 SSU (4,250 cSt); operate at differential pressures to 150 psi (10.3 bar) and working pressures to 350 psi (24.1 bar); and handle temperatures up to 300 degrees F (149 degrees C).
