Compact Pneumatic and Hydraulic Valve Actuators

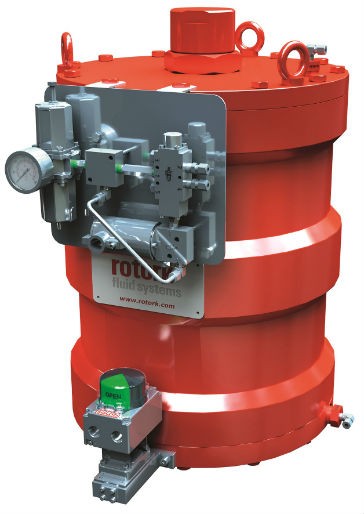

The launch of the Rotork CQ Compact introduces a range of fully concentric, balanced design pneumatic and hydraulic valve actuators that deliver a reliable and efficient self-contained solution for applications demanding functional integrity and safety where space is limited.
In addition to providing reduced dimensions when compared with conventional scotch-yoke actuators, the CQ’s symmetric design also presents a perfect weight balance on the valve, enabling increased efficiency for assembly and disassembly.
The totally enclosed, rugged CQ weatherproof housing contains a helical mechanism which transforms linear piston motion into 90-degree (+/-5 degree) rotation for the operation of quarter-turn valves.
As an option, rotation can be increased to 180 degrees. Complete customization of the torque profile is available to suit individual valve requirements.
The CQ range features a choice of cylinder sizes and different actuator builds for many diverse applications. In all cases the CQ design incorporates the removable valve adaptation within the overall dimensions for maximum compactness and actuators can be easily and safely disassembled to access internal parts for field maintenance.
Internal coatings provide enhanced corrosion protection for long term reliability. External epoxy finishes and a wide choice of seal materials can be specified to meet industry and customer requirements.
CQ Compact actuators are available for single or double-acting operation with output torques up to 600,000 Nm. Pneumatic operation is available using instrument air, nitrogen or clean natural gas at 12 barg pressure, whilst 210 barg is recommended for hydraulic operation.
