Overcoming entrained gas challenges in crude oil transfer
Sliding vane pumps successfully handle gas-heavy “three-phase” liquids common in many oilfield applications
Like snowflakes and human fingerprints, no two oil wells are exactly the same. Even though they may be located on adjacent plots of land, the characteristics of the wells can be vastly different. Whereas one might have a straight, unencumbered path to the product reservoir, the second's drilling route may require a number of dogleg turns to avoid difficult rock and sediment formations, which can give the final wellbore the look of a corkscrew.
The differences don't end when the product reservoir is tapped. Production companies have long known that oil from different parts of the country or world can have very little in common. Again, that can also be the case for wells located in close proximity of each other, with the crude oil's makeup varying to a significant degree.
Therefore, it is critically important that the exploration and production company's oilfield technicians are intimately aware with the unique operating characteristics of each and every well. Knowing this will help them select and deploy transfer equipment - with pumps playing a significant role - that will optimize returns while minimizing costly downtime caused by breakdowns that will require maintenance or replacement.
No matter where the oil is removed from the ground - be it a traditional wellpad recovering sweet West Texas Intermediate crude in the Lone Star State or the returns from a hydraulic fracturing setup in North Dakota's Bakken formation - most crude oil can be defined as a "three-phase" liquid. This means that it features a "gas-liquid-liquid" formulation consisting of natural gas, water and the crude oil itself.
The specific ratios of the gas-liquid-liquid composition that flows up the wellbore will affect its handling, transport, storage and refining. The most critical concern for the operator is the amount of gas that is present in the recovery stream. This gas is said to be "entrained" within the fluid flow and its potential effects on the capability of the entire production and transfer system must be considered before an efficient and reliable system can be built.
There are several noteworthy challenges that are created by the presence of entrained gas in the crude oil stream. The most basic is that any amount of entrained gas can make accurate and reliable flow measurement hard to achieve. Another operational concern is the chance that cavitation can occur if any of the entrained gas reverts to a liquid form as it is being transferred. This can be especially harmful if the cavitation takes place inside a pump, where the collapsing gas bubbles can put strain on the pump's internals and eventually lead to a breakdown. The amount of entrained gas in the oil can also lead to fluctuations in the system's pumping pressure. If the pressure changes too often or too drastically, the pump can be prone to experiencing a vapor-lock condition that will halt its operation.
One production area in the United States that has proven to feature oil streams with a high volume of entrained gases is the Bakken formation. Specifically, Bakken crude is a "three-phase" liquid in that it is of a light viscosity with a high concentration of entrained natural gas and other components that affect its specific gravity from day to day.
These overriding features of Bakken crude require a transfer system in which pumps are used to introduce the gas-heavy oil into a pipeline at the wellhead, from where it is typically transferred through a series of switching stations located along the pipeline and delivered to holding tanks before moving along the various stages of the refining process.
It is a combination of this setup, the unpredictable volume of entrained gas in the oil stream and the level of liquid in the tank battery that will cause inlet pressure changes to occur more frequently. It is these upset conditions, and the pump's inability to work through them, that will cause it to experience vapor lock.
A popular pump technology for crude oil-transfer systems has been gear-style pumps. However, because of their method of operation, gear pumps will begin to function unreliably if the vapor pressures vary too much, which will hamper the overall efficiency of the pipeline system. Specifically, gear pumps require the proper head pressure in order to produce a constant flow rate. If the pressure varies too widely, vapor lock will take place.
Faced with the shortcomings of gear pumps that are tasked with handling crude oil with a high volume of entrained gas, oilfield operators were on the lookout for a different type of pumping technology that could handle the demands of frequent pressure variations.
They have found a reliable and efficient alternative in positive displacement (PD) sliding vane pump technology. For nearly 115 years, sliding vane pumps have proven to be a standard-setter in myriad oilfield-based liquid-transfer operations. The secret to the sliding vane pump's repeated success in these applications is found in its unique design and method of operation.
Sliding vane pump design features a number of vanes that are able to slide into or out of slots in the pump rotor. When the pump driver turns the rotor, a combination of forces (centrifugal, mechanical push rods and liquid), causes the vanes to move outward in their slots and move around the inner bore of the pump casing. This forms internal pumping chambers and as the rotor revolves, the fluid flows through the suction port and into the pumping chambers that are created by the vanes. The fluid is then transported around the pump casing until the discharge port is reached, at which point the fluid is pushed out into the discharge piping.
This simple, yet ingenious, design enables the sliding vane pump to deliver the operational characteristics that are necessary for effective high-volume transfer of crude oil that features significant amounts of entrained gases. Those characteristics include vanes that self-adjust for wear in order to maintain volumetric consistency and non-slip operation; self-priming and dry-run capabilities; high suction capability; an adjustable relief valve that protects against changing and excessive pressures; reduced energy consumption; compatibility with high-temperature liquids; and easy vane replacement and maintenance that does not require the pump to be removed from the piping system.
Most sliding vane pump models are available in sizes that handle flow rates of 2 and 2,300 gallons-per-minute (gpm). Many oilfield operators are also finding success in mounting their sliding vane pumps on mobile skids that feature the pump, motor and gear case with the suction and discharge piping terminated at the skid's edge.

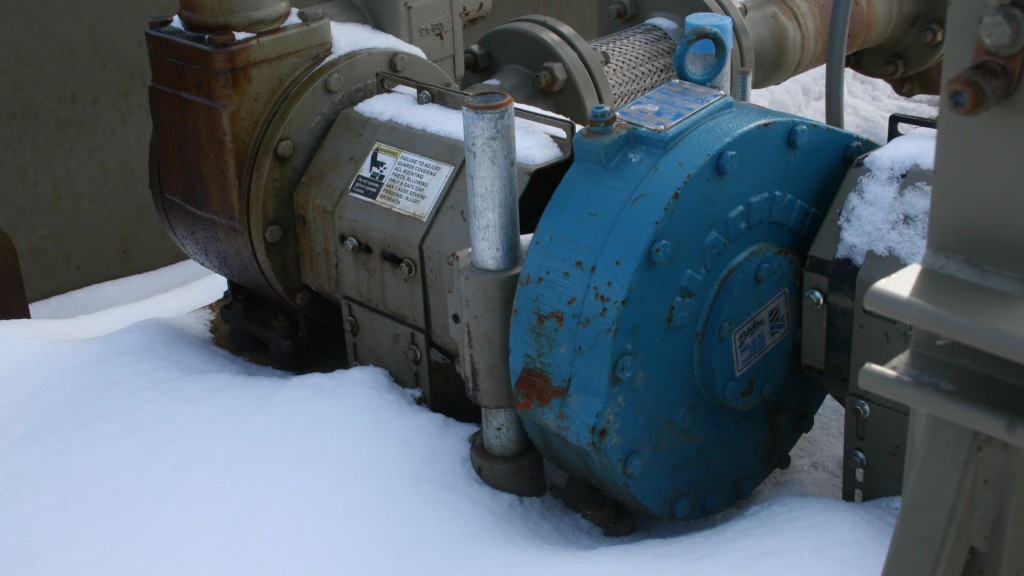

Along with their differing operational characteristics, oilfields can be located in areas where harsh weather is a constant threat. Fortunately, sliding vane pumps are able to operate in temperatures that can reach, for instance, -30ºF (-34ºC) in some Bakken or Canadian oilfields or those that can climb into the triple digits in the West Texas prairie.
The varying and unpredictable makeup of crude oil keeps oilfield operators constantly on their toes. When that produced crude contains significant levels of entrained gases, the demands put on the transfer system are ratcheted up even higher. Fortunately, sliding vane pumps possess a design and method of operation that are capable of overcoming the challenges associated with the pumping of liquids with entrained gases. In many cases, this makes sliding vane pumps a first-choice technology for operators who are looking to optimize their returns while limiting equipment breakdowns that will hamper the overall transfer process.
