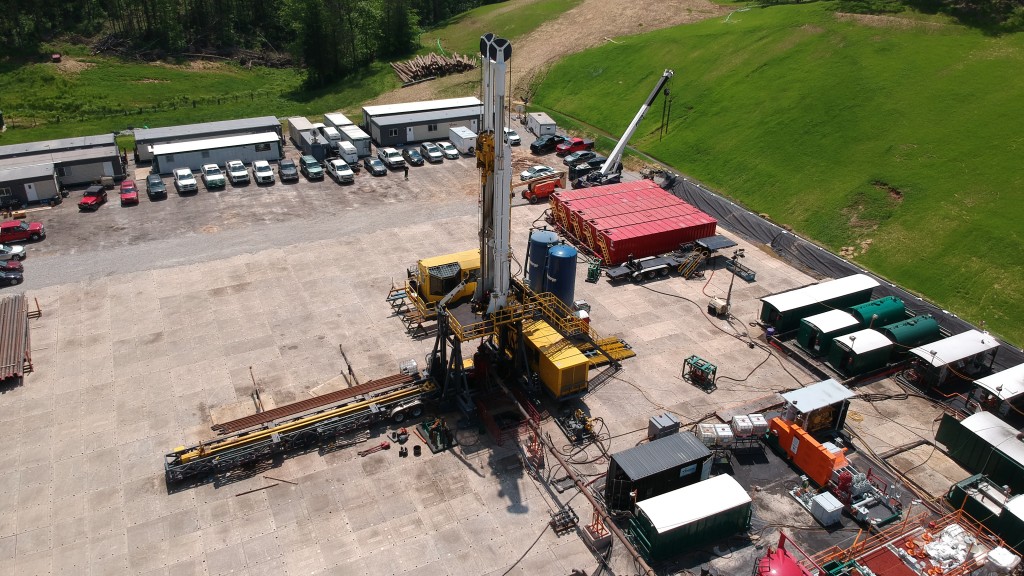

New Epiroc oil and gas drill rig improves drilling mobility
Epiroc has launched the DH350, the first of a new line of oil and gas drilling rigs that delivers advanced performance for customers who want the very best in an oil and gas machine.
The Epiroc DH350 challenges conventional rig design while offering advantages of Tier-1 class drilling rigs in a package that surpasses the mobility of any conventional rig on the market today, the company states.
The new single-piece substructure is a slingshot-style unit with integrated hydraulics to provide the fewest number of connections ever required for full rig up. The API certified substructure offers a 27-1/2" split master bushing with a maximum table opening of 44", which easily accommodates large diameter tools and complex bottom hole assemblies.
The powerful Epiroc-designed 1,200 HP diesel-hydraulic power unit provides unparalleled distribution of hydraulic power for all drilling functions, while enabling an unprecedented reduction in fuel consumption to easily get through the day. The stand-alone HPU minimizes cycle time between wells by eliminating the necessity of high voltage power from ancillary prime movers and remains an integral component atop the DH350 substructure when walking the rig between wellheads.
The crownless telescopic mast featuring 54" Nylatron sheaves provides 350,000 lb. of pullback, 50,000 lb. of pulldown force through the robust tip-out hydraulic top drive. The twin spur gear powerhead offers variable speed electric over hydraulic control with a maximum 30,000 ft-lb of rotary torque, and the ability to handle single joints of Range III drill collars up to 8" inches in diameter. The top drive delivers substantial improvements to operator safety and offering the highest quality pipe handling when coupled with the integrated iron roughneck and remote operated catwalk.
The optimized load configuration and integrated hydraulics allow crane-free rig up in under 12 hours with as few as six (6) rig loads between drilling locations, allowing operators to minimize cycle time and improve long-term well economics. The minimized load configuration is accomplished through a combination of streamlined skid-mounted components and single-piece assemblies transported via purpose built trailer or integrated subassembly axle groups. DH350 offers multiple premium configurations including hands-free BOP handling, and is currently available for order.
"The DH350 combines the mobility of carrier drive rigs with the power density of conventional skidded systems to produce one of the most agile and capable drilling rigs in the marketplace today," says Cole Carpenter, Product Manager, Deephole Oil and Gas Rig at Epiroc Drilling Solutions.
