Pressure data connected to the cloud for remote monitoring and asset control

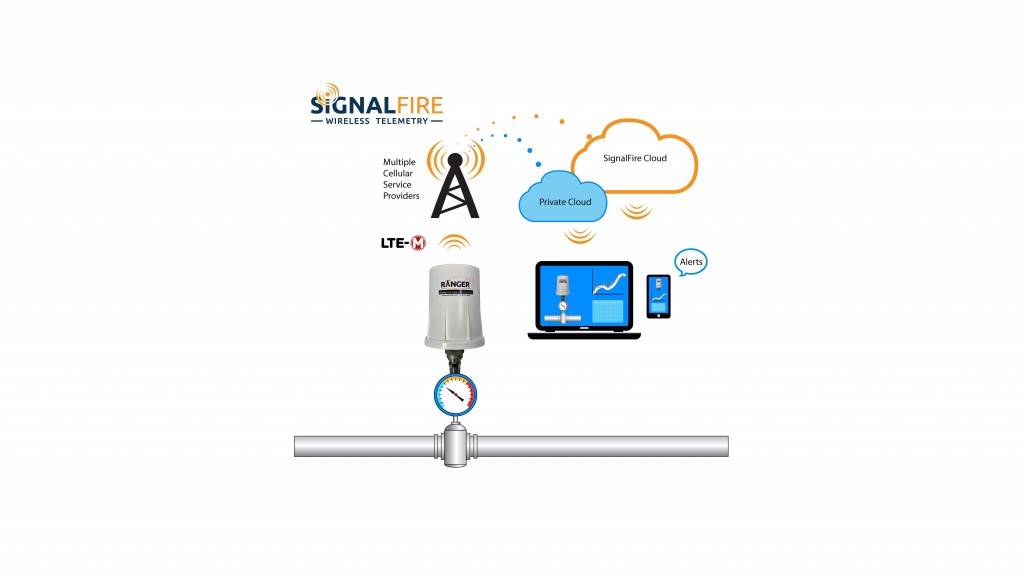

SignalFire pressure ranger diagram graphic

SignalFire Wireless Telemetry introduces the PRESSURE RANGER, an LTE-M Cellular Pressure Transmitter that provides plug & play, instant connectivity of pressure sensor data to the cloud over cellular networks.

Serving as a component of a SignalFire cloud-based telemetry solution, this IoT cellular transmitter brings pressure data to the cloud for remote monitoring, control, and alarming of assets from any web browser, including mobile devices.  In addition to operating on the SignalFire cloud, the PRESSURE RANGER utilizes MQTT/Sparkplug communications to integrate into third-party hosts.

Utilizing an integrated pressure sensor available in a variety of standard pressure ranges, the PRESSURE RANGER features a built-in GPS receiver that reports location of devices to the cloud, providing a map of all connected assets. The low power sensor allows for rapid data collection and report on exception.   In addition, the cellular transmitter reports max, min, average, and instantaneous pressure. Certified for use in Class 1, Division 2 environments, the PRESSURE RANGER can operate in challenging environments, offering a safer alternative to local operators.

"The PRESSURE RANGER utilizes the latest LTE-M technology to connect any pressure measurement point to the cloud for remote monitoring, control, and alarming from any web browser," explains Josh Schadel, SignalFire General Manager and CTO. "Cloud connectivity removes barriers in collecting pressure data from assets in remote locations."

Easy IoT Solution

The PRESSURE RANGER offers a very easy set up with the least amount of hardware.  Plug and play, the transmitter needs no programming or hardware for a do-it-yourself experience. The PRESSURE RANGER communicates directly to the 4G network, without a gateway. It is powered with an internal battery pack and comes packaged in a weatherproof housing.  The PRESSURE RANGER's internal battery pack can operate both the sensor and radio for years depending on the update rate and pressure sample interval.  The cellular transmitter comes complete with a web and mobile-friendly SignalFire Cloud interface, which allows users to remotely monitor assets, view trends and receive alarms either by text or email.

Utilizing the MQTT Sparkplug protocol allows for easy integration with private cloud or SCADA platforms that support this emerging standard. The data from the PRESSURE RANGER will populate data "tags" in the SCADA system allowing the operator to access the sensor data and control of the PRESSURE RANGER's settings.

Company info

43 Broad St., Unit C-300
Hudson, MA
US, 01749

Website:
signal-fire.com
