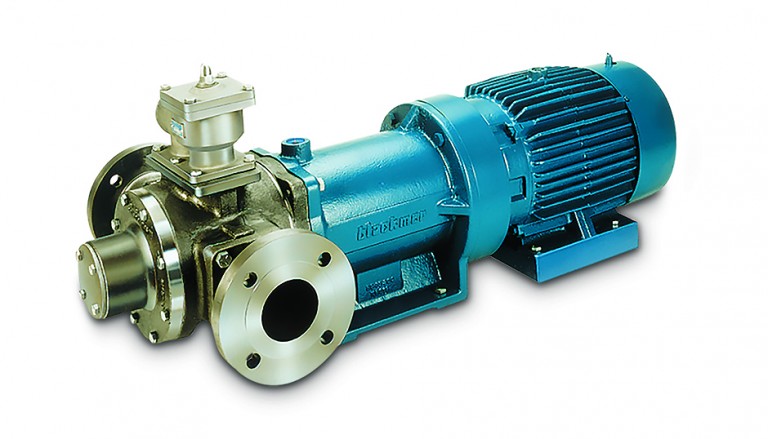

Blackmer - SMVP Pumps

Blackmer has combined our proven sliding vane design with a seal-less magnetic coupling to meet the growing need for zero shaft leakage when handling expensive, hazardous or hard to seal fluids. Environmental concerns, workplace safety, EPA requirements, and local government agency regulations may may the "Best Available Control Technology" (BACT) for certain chemicals.

Features & Benefits

Long lasting

316 stainless steel construction with metallized carbon sleeve bearings and non-metallic vanes for longer life.

Design

Blackmer seal-less pumps are designed with self-lubricating carbon graphite sleeve bearings and no metal to metal contact. This special design allows dry running for priming and line stripping.

Positive flow

Blackmer seal-less pump models have a unique bearing and head design that allows a small quantity of pumpage to circulate through the containment can and bearing surfaces. This positive flow of fluid minimizes temperature rise for maximum bearing life.

Samarium-cobalt magnets

Blackmer seal-less pump models are equipped with samarium-cobalt magnets as standard construction. This rare earth material prevents permanent magnet degradation if adverse operating or "break-free" conditions occur.

Replaceable end discs

Replaceable end discs allow easy rebuilding of the pumping chamber to like-new condition without removing the pump from the piping.

Maintenance

Easy maintenance: vanes can be easily replaced without removing the pump from the piping system.

Specs

Key Specifications
Model: SMVP15 Flow Rate 52-64 L/min, Differential Pressure 8.6 bars
Model: SMVP30 Flow Rate 117-142 L/min, Differential Pressure 8.6 bars
Model: SMVP50 Flow Rate 207-251 L/min, Differential Pressure 8.6 bars
Model: SMVP100 Flow Rate 344-416 L/min, Differential Pressure 8.6 bars
Model: SMVP100 Flow Rate 544-813 L/min, Differential Pressure 8.6 bars
