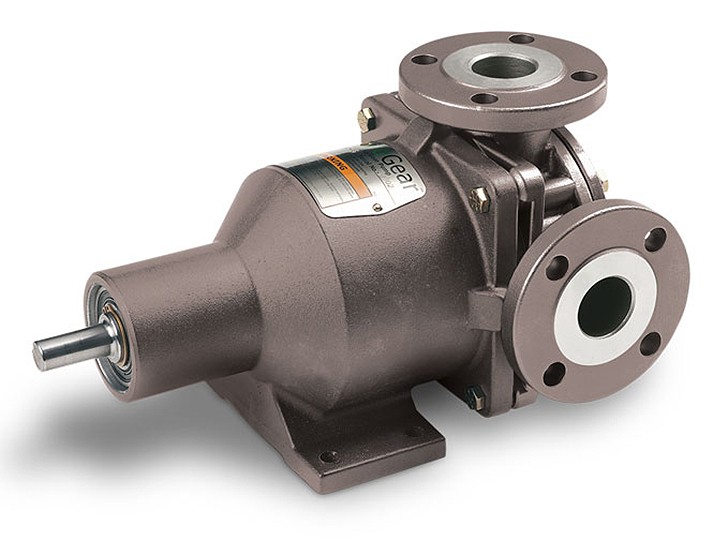

EnviroGear®, part of Dover Corporation’s PSG®, is proud to offer this innovative, durable and environmentally friendly positive displacement gear pump. EnviroGear Internal Gear Pumps save you money by providing a low initial cost, high performance, and low maintenance costs. Our revolutionary seal-less design with patented between-the-bearing support system effectively eliminates leaks and mechanical wear, helping to increase personnel and environmental safety.

Features & Benefits

Interchangeable gear pumps

EnviroGear pumps are designed to be interchangeable with up to 95% of the internal gear pumps that are currently available in the market. That means no piping changes, no driver changes, no coupling changes, no flow-rate changes and no baseplate changes.

The EnviroGear Design

The patented EnviroGear design supports the rotor and idler gears at three crucial locations with an Eccentric Spindle that is supported in the head, the crescent location and the back of the containment canister.

DURABILITY

Large, long radial bushings support the entire length of the rotating element, which spreads out the hydraulic forces and allows the bushings to last longer.

EFFICIENCY

This single fluid-chamber design results in a much shorter, simpler flow path and allows the pump to easily handle fluids with high viscosities up to 50,000 cSt while increasing bearing life and cleanability.

Magnets

The EnviroGear uses magnets mounted directly to the rotor, eliminating the adapter plate, allowing for a single-fluid chamber.

Specs

Key Specifications
Model: E1-2-CS Max. 1800 RPM, 3.4 m3/hr Flow @ Max. Speed
Model: E1-4-CS Max. 1800 RPM, 6.8 m3/hr Flow @ Max. Speed
Model: E1-24-DI or CS Max. 780 RPM, 17 m3/hr Flow @ Max. Speed
Model: E1-32-DI or CS Max. 780 RPM, 22.7 m3/hr Flow @ Max. Speed
model: E1-55-DI or CS Max. 640 RPM, 30.7 m3/hr Flow @ Max. Speed
Model: E1-69-DI or CS Max. 640 RPM, 38.6 m3/hr Flow @ Max. Speed
Model: E1-82-DI or CS Max. 640 RPM, 45.4 m3/hr Flow @ Max. Speed
