600 Single Axle Tier 3 family

star_border View Full Profile
600 Single Axle Tier 3 family  Compressors

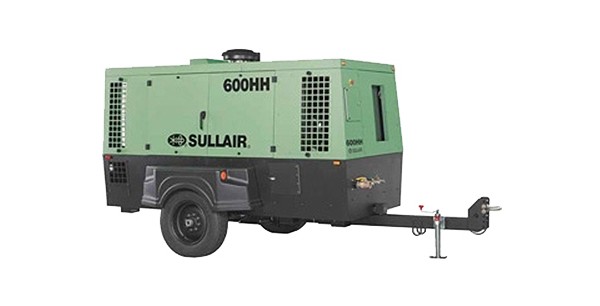

Sullair 600 Single Axle Tier 3 family rotary screw portable air compressors deliver 550 to 750 cfm at 150 to 250 psig or 15.6 to 21.2 m3/min at 10.3 to 17.2 bar. Unit is designed for reliability and total accessibility. Powered by a Tier 3 emissions compliant Caterpillar engine. Mounting option is 2-wheel, single axle or less running gear. Enclosure is made of durable powder coated Galvanneal sheet metal. Other features include independent rubber torsion suspension, wheel bearing grease fittings, and a lockable curbside instrument panel. The compressors features a pneumatic inlet valve and 0 to 100% capacity control.

Specs

Key specifications
Model 550RH 550 cfm (15.6 m3/min, 260 L/s), 250 psig (17.2 bar)
Model 600HH 600 cfm (17.0 m3/min, 283 L/s), 200 psig (13.8 bar)
Model 700HH 700 cfm (19.8 m3/min, 330 L/s), 175 psig (12.1 bar)
Model 750H 750 cfm (21.2 m3/min, 354 L/s), 150 psig (10.3 bar)
Available Engine Tier 3 Caterpillar 275 hp (205 kW)
