600 AF System Single Axle Tier 3 Family

Sullair

star_border View Full Profile
Sullair - 600 AF System Single Axle Tier 3 Family

Sullair 600 AF System Single Axle Tier 3 family rotary screw portable air compressors deliver 550 to 750 cfm at 150 to 250 psig or 15.6 to 21.2 m3/min at 10.3 to 17.2 bar of aftercooled and filtered compressed air that meets or exceeds ISO 8573-1: Class 1.7.1 quality standards. The AF System consists of a specially designed Sullair portable compressor with a built-in high-capacity, low-approach aftercooler, a water-condensate trap and a highly efficient contaminant removal system.

Specs

Key specifications
Model 550RH 550 cfm (15.6 m3/min, 260 L/s), 250 psig (17.2 bar)

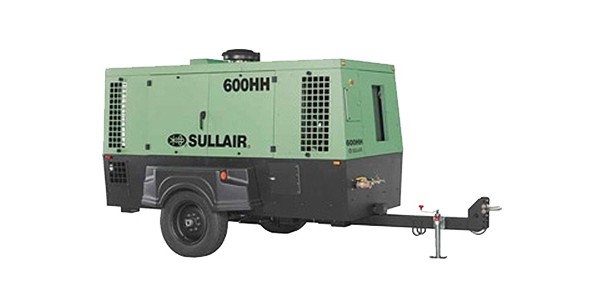

Model 600HH 600 cfm (17.0 m3/min, 283 L/s), 200 psig (13.8 bar)
Model 700HH 700 cfm (19.8 m3/min, 330 L/s), 175 psig (12.1 bar)
Model 750H 750 cfm (21.2 m3/min, 354 L/s), 150 psig (10.3 bar)
Available Engine Tier 3 Caterpillar 275 hp (205 kW)
