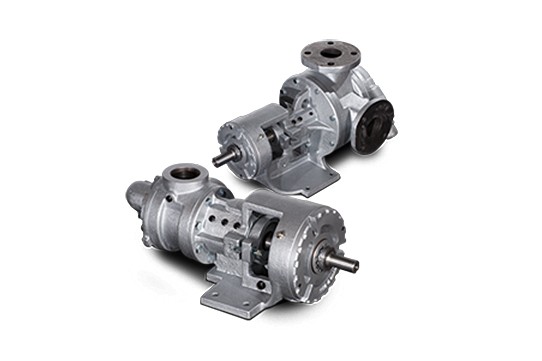

G Series Pumps

G Series Internal Gear Pumps are reliable, durable, and cost effective. They are well suited to industrial applications involving both thin and viscous liquids. These cast iron G Series internal gear pumps are offered in a variety of connection sizes and flow rates. They are also designed to drop directly into competitive (Viking®, Gorman-Rupp® and Tuthill®) installations. These pumps have the same inlet/discharge connections, footprint, and drive shaft size/positioning as competitor models. The G Series pump performance is also equivalent to competitors, simplifying the upgrade process.

Specs

Key Specifications
Model: G1-2 Normal Pump Rating 1,800 RPM, 3.4 m3/hr, Max. Discharge Pressure 13.8 bar
Model: G1-4 Normal Pump Rating: 1,800 RPM 6.8 m3/hr, Max. Discharge Pressure 13.8 bar
Model: G1-24 Normal Pump Rating: 780 RPM 17 m3/hr, Max. Discharge Pressure 13.8 bar
Model: G1-32 Normal Pump Rating: 780 RPM 22.7 m3/hr, Max. Discharge Pressure 13.8 bar
Model: G1-55 Normal Pump Rating: 640 RPM 30.7 m3/hr, Max. Discharge Pressure 13.8 bar
Model: G1-69 Normal Pump Rating: 520 RPM 31.8 m3/hr, Max. Discharge Pressure 13.8 bar
