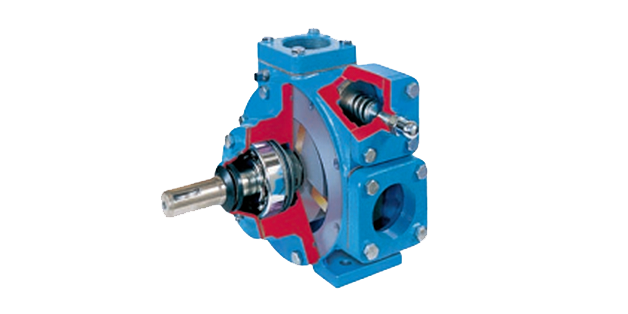

Blackmer - X Series Vane Pumps

These pumps have a number of vanes that are free to slide into or out of slots in the pump rotor. When the pump driver turns the rotor, centrifugal force, push rods, and/or pressurized fluid causes the vanes to move outward in their slots and bear against the inner bore of the pump casing forming pumping chambers.

Use X Series cast iron pumps for clean, non-corrosive industrial liquids and petroleum products.

Specs

Key Specifications
Maximum Working Pressure 12.1 bar
Maximum Differential Pressure 8.6 bar
Max. Flow Rate 329 to 1,999 L/min
Maximum Pump Speed 520 to 780 rpm
