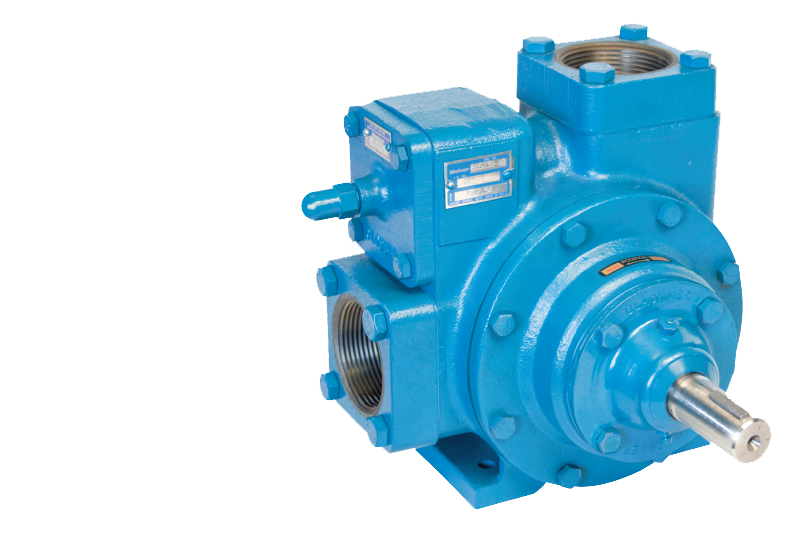

Blackmer - TX Series Vane Pumps

These pumps have a number of vanes that are free to slide into or out of slots in the pump rotor. When the pump driver turns the rotor, centrifugal force, push rods, and/or pressurized fluid causes the vanes to move outward in their slots and bear against the inner bore of the pump casing forming pumping chambers.

Use TX Series cast iron transport pumps for clean, lubricating liquid petroleum products, biofuels or solvents.

Specs

Key Specifications: 5 models
Differential Pressure 8.6 bar
Working Pressure 12.1 bar
Pump Speed 500 to 780 rpm
Nominal Flowrate 212 to 1,911 L/min
