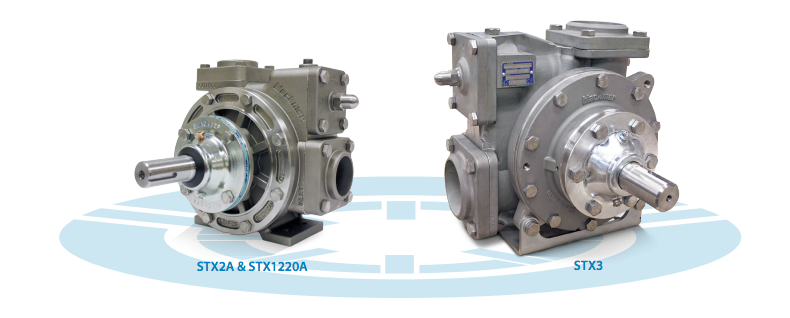

Blackmer - STX Series Vane Pumps

These pumps have a number of vanes that are free to slide into or out of slots in the pump rotor. When the pump driver turns the rotor, centrifugal force, push rods, and/or pressurized fluid causes the vanes to move outward in their slots and bear against the inner bore of the pump casing forming pumping chambers.

Use STX Series stainless Steel transport pumps for high temperature and high viscosity applications.

Specs

Key Specifications: 3 models
Pump Speed (Max.) 780 to 1,200 rpm
Maximum Differential Pressure 8.6 bar
Nominal Flow Rate (Max.) 227 to 846 L/min

Company Info

1809 Century Avenue SW
Grand Rapids, MI
US, 49503-1530

Website:
blackmer.com

Read more
