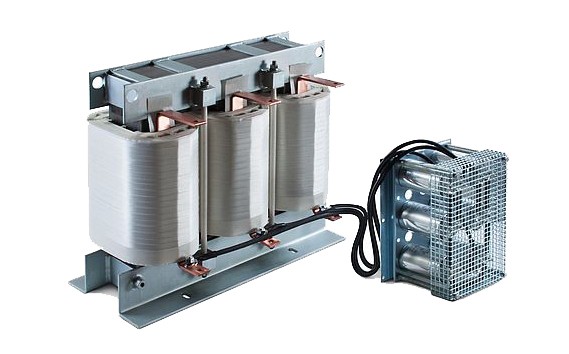

Schaffner EMC, Inc. - FN 5040 HV Filters

The FN 5040 HV Sine wave filters converts the rectangular PWM output voltage of motor drives into a smooth sine wave with low residual ripple. It eliminates premature motor damage caused by high dv/dt, overvoltages, cable ringing, motor overheating, and eddy current losses.

Specs

Key Specifications
Motor cable length ≤2000m
Motor frequency 0 to 70 Hz
Motor power 7.5 to 1200 kW
Rated Current 13 to 1320 A
Switching Frequency 2 to 16 kHz
Voltage 0 to 690 V

Company Info

52 Mayfield Ave.
Edison, NJ
US, 08837

Website:
schaffnerusa.com
