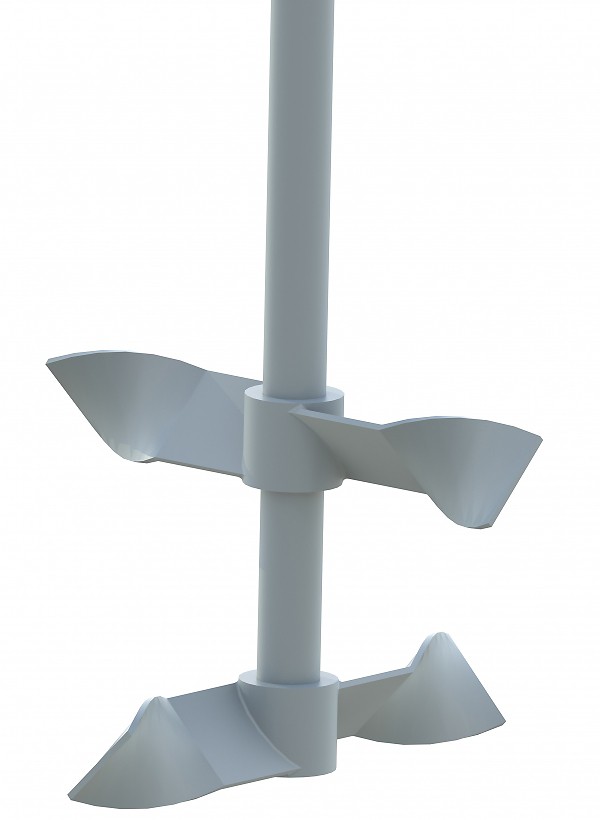

The JT-2 Impeller has been developed for superior blending in transitional flow. Higher viscosity and non-Newtonian fluids make blending much more challenging. This impeller is used after conventional turbines have lost efficiency due to viscous effects and before the need for close clearance impellers.
The design promotes blending by efficiently moving material in one direction in the center of the tank and the opposite direction on the outside of the tank. The increase in efficiency of this impeller comes from the improved flow pattern that greatly reduces recirculation zones that extend the blend times of other impellers. This flow pattern improves the top to bottom communication in the vessel.
Features & Benefits
Up to 50% reduction in power draw for the same blending performance compared with competitive impellers
Significantly lower total machine cost compared to competitive designs
Two bladed impeller for easy installation into vessels
Design operates in either direction
Impeller between 70% and 90% of the tank diameter for improved heat transfer
Larger impeller diameter reduces the need for a close clearance impeller (Helix / Anchor) in the low transitional regime
