Wide Range Wear Resistant (WR2)

star_border View Full Profile

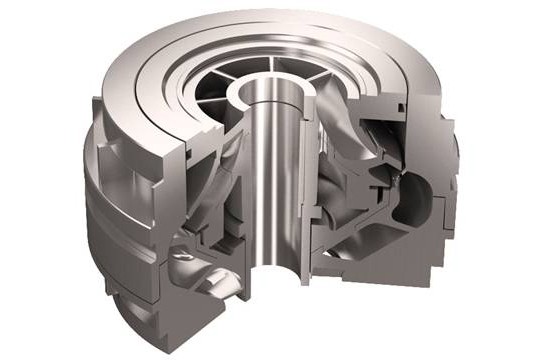

Wide Range Wear Resistant (WR2) Pumps

The innovatively designed Borets Wide Range Wear Resistant (WR2) pump exploits new technologies, manufacturing process and materials to expand the ESP system capabilities. The WR2 pump is designed to handle harsh well conditions including high amounts of gas and sand produced through the pump. The pump is ideally suited for a wide range of production with the goal of extending run life and minimizing well interventions.

Specs

Key Specifications
Stage alloy MIM technology alloy
Stage geometry Advanced Mixed Flow
Flow range, BPD (m3 /d) 125 – 440 (20 – 70), 250 – 1,000 (40 – 160), 560 – 1,900 (90 – 300)
Pump OD, in / (mm) 2.60 (66) 3.38 (86) 3.62 (92)
Head per stage at BEP, ft (m) at 100 Hz 17.4 (5.3), 31.5 (9.6), 36.0 (11.0)
Power per stage at BEP, HP (kW) at 100 Hz 0.105 (0.079), 0.27 (0.20), 0.59 (0.44)
