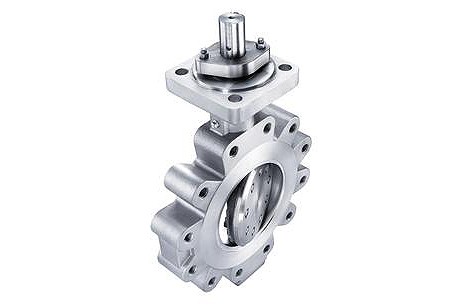

Crane®FKX 9000

Triple Offset Valves


Crane®FKX 9000

The Crane®FKX 9000 Triple Offset Valves valve design is recommended for industrial applications where large bore valves handle hot steam or isolate parts of their plants and have high/low temperatures that prevent the use of rubber lining elements. Compared to ball valves, the Crane®FKX 9000 Triple Offset Valves is an affordable solution that requires less structural support to ensure bubble tight shut-off. The result is a virtual zero leak rate even in high-pressure, high-temperature applications. Due to their quarter-turn movement for opening and closing, the valves are easy to automate and they can fulfill a quick closing time, which is often required in safety applications.

VIEW PROFILE

Specs

Key Specifications
Size Range 3” up to 24”, in a single piece cast body
Pressure Ratings ASME Class 150#, Class 300#
Temperature Range -140°F up to 1022°F; -60°C up to 550°C
Compliance ASME B16.34 valve design standard, Zero leakage as per API 598 & API 6D
