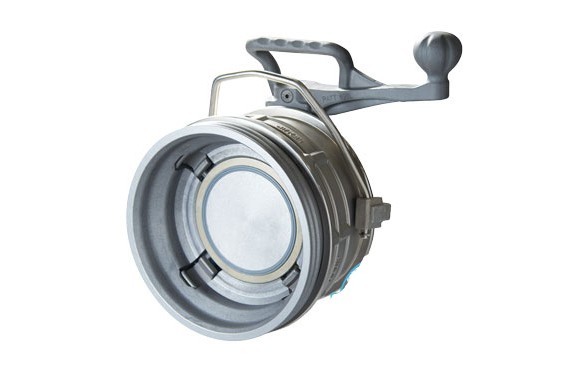

OPW Engineered Systems - LYNX Series Couplers

LYNX is optimized to bring your liquid terminals and tank trucks the very best in dry-break API technology. From its ultra-durable stainless-steel collar to its ability to protect your loading-arm connection even when facing surge pressures up to 500 psi, you can count on LYNX for years of service and to help minimize fluid loss. If you have 30 seconds and a screwdriver, you can disassemble LYNX. Thanks to a U-pin design, loading-arm operators can perform coupler maintenance without special tools and do it quickly.

Specs

Key Specifications
Handle Length Short 5.9" (150mm) or Long 7.8" (200mm)
Weight 19 lbs. (8.6 kg.)
Seals Viton B, Viton GFLT, Nitrile/Buna, Fluorosilicone, FFKM
Max Working Pressure 80 psi (5.5 bar) (550 kPa)
Product Test Pressure 119 psi (8.2 bar) (820 kPa)
Design Pressure 363 psi (25 bar) (2500 kPa)
Max Surge Pressure 493 psi (34 bar) (3400 kPa)

Company Info

2726 Henkle Drive
Lebanon, OH
US, 45036

Website:
opw-es.com

Phone number:
513-932-9845
