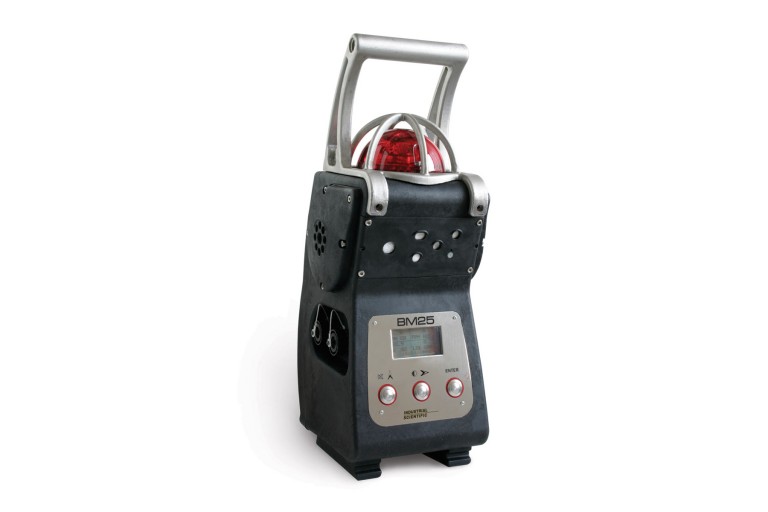

Tyco Gas and Flame Detection - BM 25 Gas Detectors

The BM25 packs the benefits of a fixed system area monitor into a rugged, user-friendly and transportable instrument. It was designed to detect one to five gases for mobile or temporary work applications, team protection, area surveillance or places where fixed detection systems are not suitable.

Powered by a NiMH battery pack, the BM 25 multi gas monitor offers up to 170 hours of continuous run time. Other standard features include STEL and TWA values, as well as a data logging capacity of more than four months. Multiple units can be grouped using optional alarm transfer kits. This protects larger areas by transferring alarms from one BM 25 to the next. An intrinsically safe trickle charger is also available for long-term area monitoring in classified zones.


Key Specifications
Enclosures: IP66 Impact resistant polycarbonate
Dimensions 470 X 180 X 190 mm (16.7" X 7.1" X 7.5")
Display Graphic liquid crystal display with backlight
Datalogging Capacity 200,000 Measurements
Run Time NiMH (up to 170 hours operating time, 135 hours in wireless mode)
Recharge Time 4.5 hours, typical
