0110/27423_en_f0d99_30089_mx43-usb2-copy.jpg

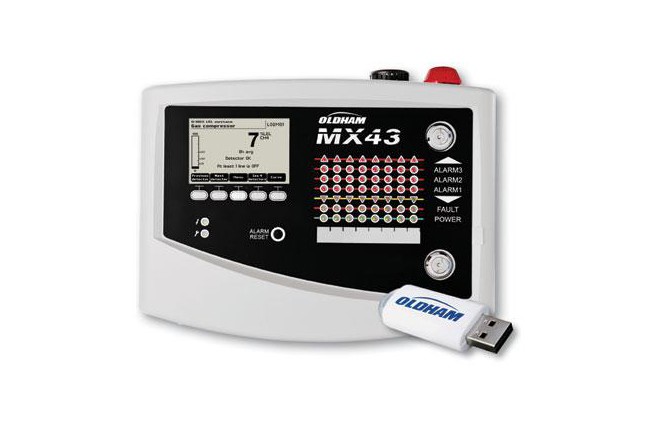

Fully scalable, and designed to functional safety performance level 1 standards, the MX 43 is an analog and digital controller that continuously measures and controls gases in the atmosphere. The MX 43 gas detector manages both digital lines and analog channels, and covers all needs for a wide variety of gas monitoring applications. The MX 43 digital technology allows up to 32 detectors to be distributed on 8 lines for increased cost savings.

Specs

Key Specifications
Power 100-240 Vac 50-60 Hz or 21-28 Vdc, 112 W max
Digital lines 8 maximum RS-485 communication, proprietary protocol, 9600 Baud 2 twisted shielded-pair cable
Analog channels 8 maximum 0-23 mA analog signal input (4 to 20 mA reserved for measurement) 120 Ohm load resistance 2 or 3-core shielded cable
Voltage (typical) 21 to 28Vdc
Digital outputs RS-485 Modbus RTU serial link
