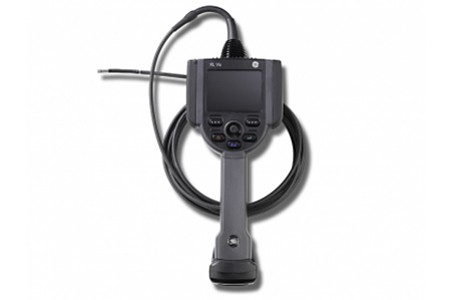

GE - XL Vu VideoProbe™ Video Inspection

The XL Vu VideoProbe™ system is a versatile video borescope that combines portability, durability with high quality imaging technology and measurement to help you make smart decisions fast. Designed with general inspection applications in mind, the XL Vu delivers superior resolution over conventional fiberscopes.

Specs

Key Specifications
System Weight In Case: 6.50 kg (14.30 lb) Without Case: 1.73 kg (3.80 lb)
System Operating Temp -20°C to 46°C (-4°F to 115°F) LCD requires warm-up period below 0°C (32°F)
Waterproof Insertion tube and tip to 14.7 psi (1 bar, 10.2 m of H2 O, 33.5 ft of H2 O)
Power 8.4 V, 43 Wh and 86Wh Battery Pack
LCD Monitor Integrated transflective 9.40 cm (3.70 in) active matrix VGA color LCD with XpertBright, 640 x 480 resolution
Joystick Control 360° All-Way tip articulation with XpertSteer, bump gesture, menu access and navigation
