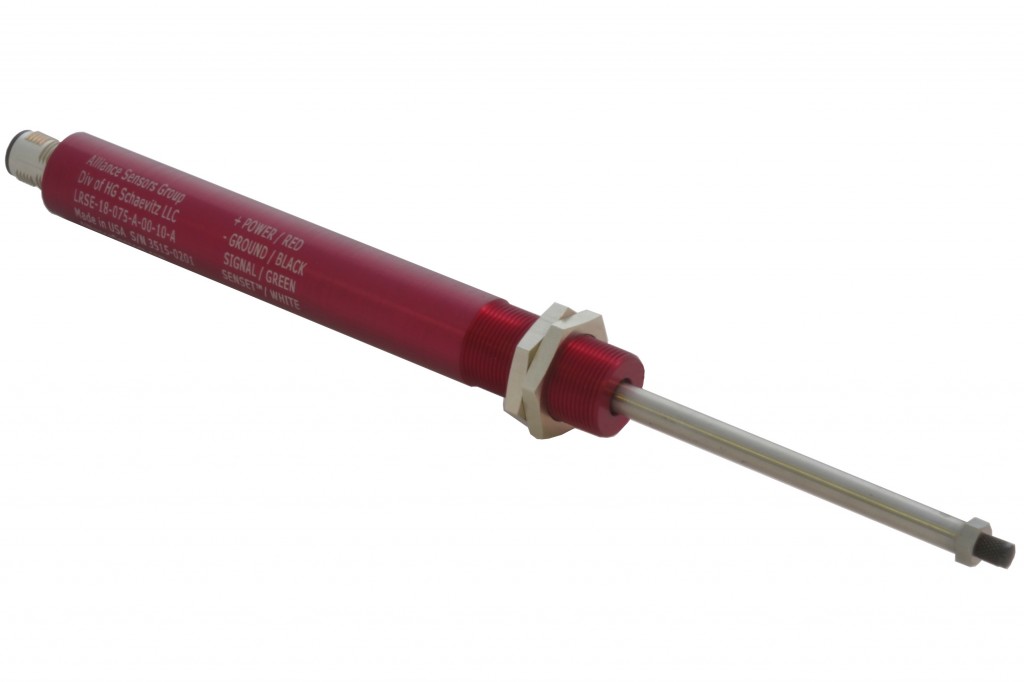

The LRS-18 series of LVIT (Linear Variable Inductance Transducer) spring loaded position sensors by Alliance Sensors Group are contactless devices designed for dimension or position measuring applications in factory automation and in various industrial and commercial applications such as automotive testing, mil/aero test stands, robotic arms, and packaging equipment, where the sensing element cannot be attached to the object being measured. LRS-18s are offered in full scale ranges from 12.5 to 100 mm (0.5 to 4.0 inches) with excellent resolution and high stroke-to-body-length ratios. The maximum tip force on the item being measured is 1 pound.
LRS-18 sensors have a 19 mm (0.75 inch) diameter aluminum or stainless steel body with an M18 x 1 thread and come with two hex jam nuts for easy installation in place of an 18 mm analog prox sensor. These sensors use a 0.25 inch diameter probe equipped with an AGD No. 9 contact tip, and are offered with either an axial cable or a connector. Operating from a variety of DC voltages, the sensors are available with a choice of four analog outputs and they all include ASG’s proprietary SenSet™ field calibration feature.
|Measuring Ranges||12.5 mm to 100 mm (0.5 to 4.0 inches) full scale (nominal)|
|Linearity Error||±0.15% of Full Scale Output (FSO) typical, ±0.25% max.|
|Resolution||0.025% of FS|
|Operating Temperature||-20 to 85 C (-40 to 105 C Extended Range)|
|Temperature Coefficient||≤±0.015% of FS/K|
|Vibration||5-20 Hz 0.5 inch p-p; 20-2000 Hz 4.2 g p-p|
|Shock||1000 g, 11 msec.|
