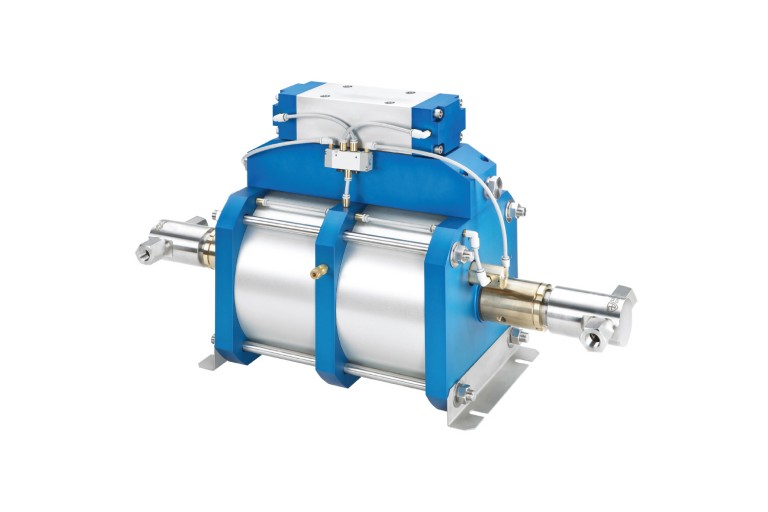

Parker Autoclave Engineers AHL118-2D series pump is designed for customers that have a need for high pressure but want high flow(fill) rates all in one pump. This pump can generate a fill rate of almost 5.6 GPM while maxing out at over 22,500 psi (1654.7 bar). Being air driven, the pump is explosion proof and safe for use in hazardous areas.
Pumps are used for pumping oil, water or oil/water mixtures. However, all AE pumps are designed standard with stainless steel wetted parts, and along with special seals makes them ideal for many chemical applications.
|Air to Pressure Ratio||1:239|
|Air Drive Pressure Range||20-95 psi (1.4-6.5 bar)|
|Volume Displacement per Stroke||4.4 in³ (72.1 cm³)|
|Maximum Outlet Pressure||22,500 psi 1,551 bar)|
|Nominal air pressure required for maximum output pressure||95 psi (6.59 bar)|
