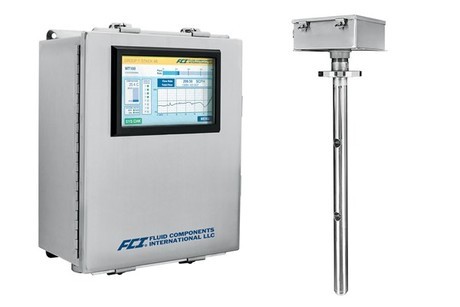

The MT100 Series is an insertion type, multipoint thermal flow meter specifically designed for large diameter pipes, such as stacks and flues, and large rectangular ducts, such as air feed intakes and HVAC. These large pipe/duct applications are difficult for ordinary flow meters because of distorted flow profiles and lack of straight-run that can lead to inaccurate and non-repeatable flow measurement. FCI's MT100 places up to eight (8) flow sensing points in the flow stream and averages them which results in a highly accurate and repeatable flow rate measurement. Unlike other large pipe flow meters, the MT100 has no moving parts or orifices to foul or clog. The insertion design, in the same plane, makes them an easy and lower cost solution to install.
|Flow Range||0.25 SFPS to 1000 SFPS [0,07 NMPS to 305 NMPS] in air at standard conditions of 70°F [21,1°C] and 14.7 psia [1,01325 bar(a)]|
|Flow Accuracy (at calibrated conditions)||±1.75% of reading, ±0.5% of full scale|
|Flow Repeatability||± 0.5% reading|
|Temperature Accuracy||± 2°F [°1°C]|
|Temperature Repeatability||± 1°F [°1°C]|
