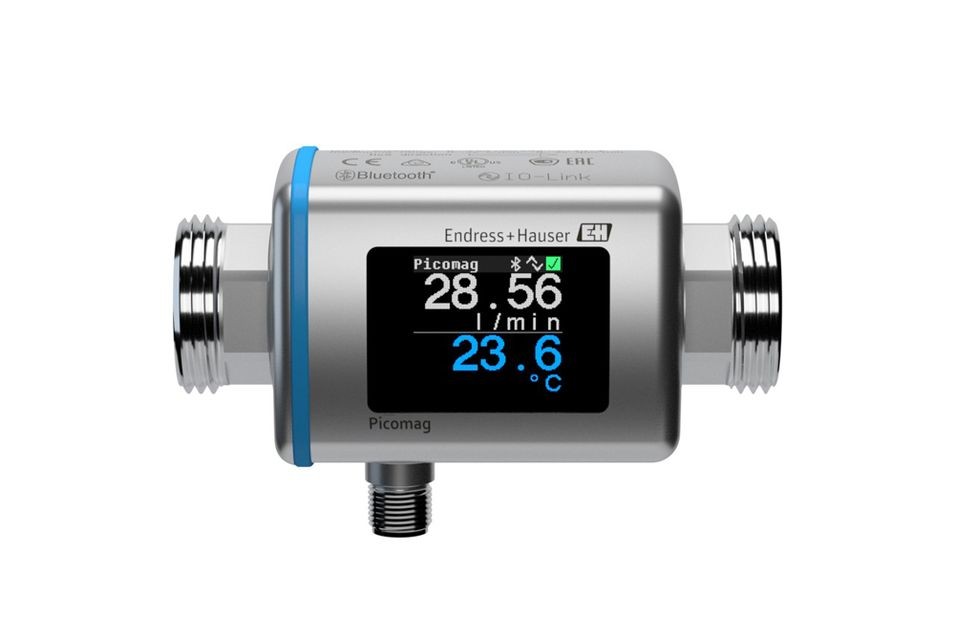

Endress+Hauser - Picomag Flow Meters

Picomag is the economical magmeter for many applications in secondary circuits with conductive liquids in all industries. End customers, skid builders, equipment manufacturers and system integrators value the space-saving Picomag for its flexible installation capabilities. Additionally, its future-oriented, intuitive operation via SmartBlue app on every Bluetooth-enabled smartphone or tablet ensures fast, secure and simple commissioning.


Key Specifications
Nominal diameter range DN15 to 50 (1/2 to 2")
Wetted materials PEEK, Stainless Steel, FKM Electrodes: 1.4404/316L
Max. measured error Volume flow: +/-2% o.r. +/- 0.5% o.f.s
Measuring range up to 750 l/min
Max. process pressure 16 bar
Medium temperature range -10 to 70 °C
Ambient temperature range -10 to 60 °C
