10K PSI

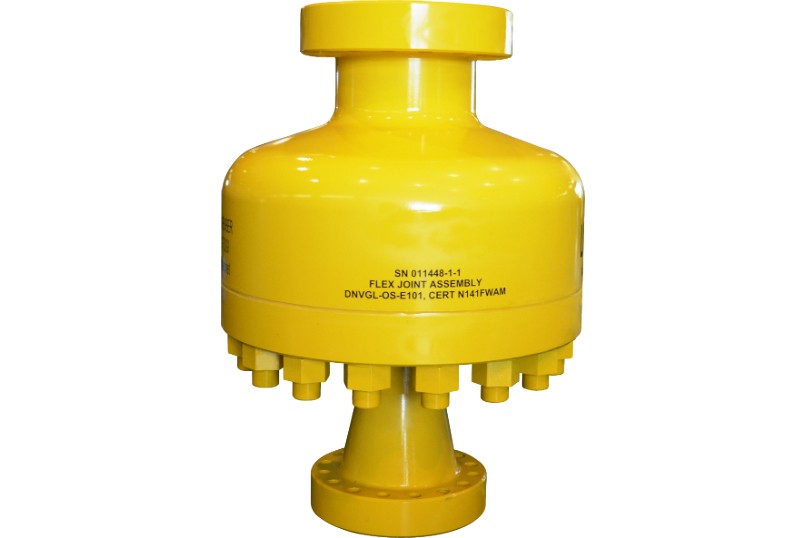

LORD® Flexible Joints can be deployed with Intervention Workover Control Systems (IWOCS) and the associated riser system to accommodate the motion of the intervention / workover vessel relative to the subsea wellhead. A flexible joint can replace a stress joint in this application, supporting the tension in the riser and containing pressure, yet offering a much lower bending stiffness. When used to replace a traditional bottom stress joint, the significantly lower moment imparted to the wellhead allows the operator to perform more workovers per well, thereby extending the life of the field.

Specs

Key Specifications
Operating Pressure, max 10,000 psi (69 MPa)
Hydrotest Pressure 15,000 psi (103 MPa)
Operating Temperature 160°F (70°C)
Maximum Temperature Range 14°F (-10°C) to 200°F (90°C)
Internal Diameter 7.22" (18.3 cm)
