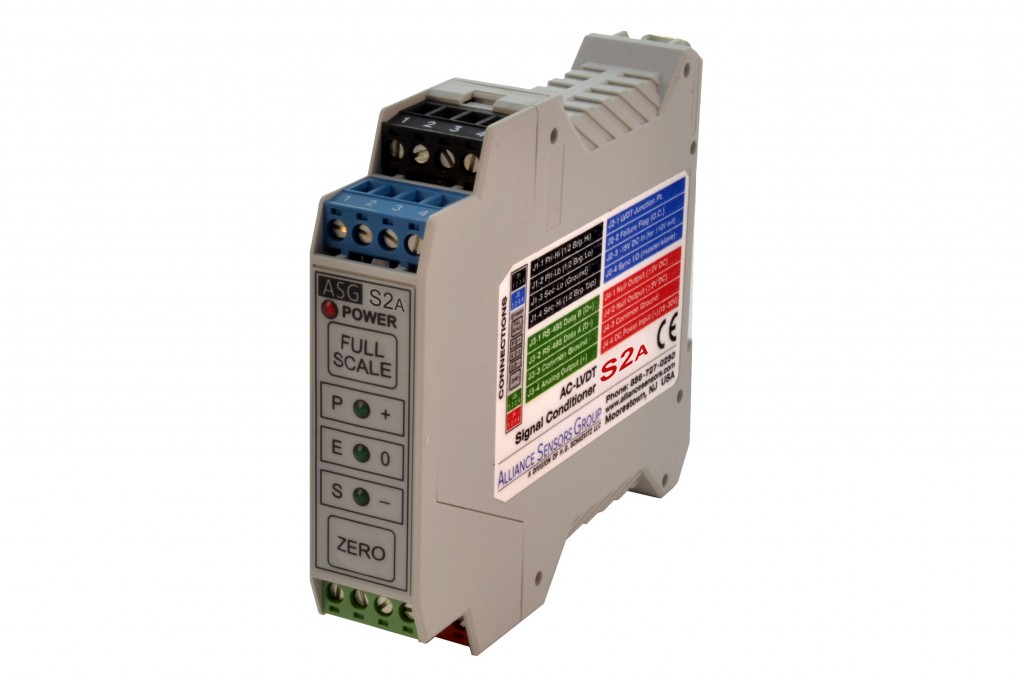

Alliance Sensors Group's model S2A DIN-rail-mounting LVDT signal conditioner is designed specifically for the power generation industry. It offers comprehensive diagnostics for sensor or wiring failure, real time recalibration of the Full Span and Zero outputs, enhanced ground loop noise rejection, and backward compatibility to legacy S1A signal conditioners. Utilizing front panel push buttons for easy calibration, the S2A is engineered to work with the widest range of LVDT, RVDT, and inductive half-bridge LVRT sensors by providing four excitation frequencies that will operate most AC-LVDTs over a 50 to 5,000 mVrms range of sensor output. S2A modules offer a choice of 8 analog ouptuts and half-duplex RS-485 digital communications to facilitate remote setup and for saving a module's setup parameters to hot swap them with another module.
|Operating Power||+15 to +30 V DC (+24 V nominal), 80 mA max. at 24 V DC; +15 V DC and -15 V DC needed for ±10 V DC bipolar output|
|Analog DC Outputs||0 - 5 V, 1 - 5 V, 0.5 - 4.5 V, 0.5 - 9.5 V, 0 -10 V, -10 to +10 V, 0 - 20 mA sourcing (3-wire), 4 - 20 mA sourcing (3-wire)|
|Loop Resistance||850 Ohms maximum with 24 V DC supply|
|-3 dB Response||10% (minimum) of excitation frequency (normal setting); 10 Hz (default) user adjustable (low noise setting)|
|Noise and Ripple||≤1 mVrms (voltage output); ≤2 μArms (current loop output)|
|Output Non-Linearity||≤±0.025% of Full Span Output (FSO)|
|Operating Temperature||0 to 75 C|
