CLASSIC Series | TCM 1550

star_border View Full Profile
CLASSIC Series | TCM 1550 Flow Meters

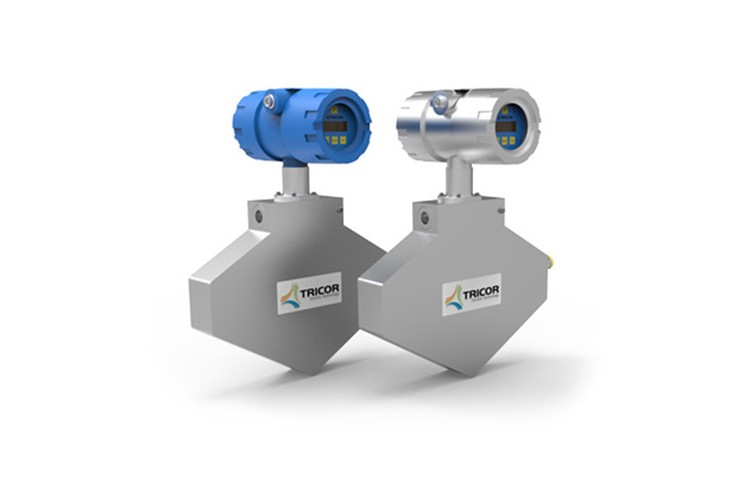

The TRICOR CLASSIC Series TCM 1550 Coriolis Mass Flow Meter has a maximum mass flow rate of 1550 kg/hr (57 lb/min) or 234 bbl/day and nominal size of DN6 (1/4"), and is rated for process pressures up to 2900 psi (200 bar). Standard accuracy for the TCM 1550 is 0.3%, but with a custom calibration, 0.1% accuracy is possible. The diamond shape (D-shape) tube design has the best overall performance of any Coriolis tube shape. The mechanical advantages of this design include the best signal-to-noise ratio and reduced effects of external vibrations, thus improving zero stability.


Key Specifications
Mass Flow Rate (max.) 1550 kg/h (57 lb/min)
Volumetric Flow Rate (max.) 1550 l/h (6.82 gpm, 234 bbl/d (US))
Standard Pressure Rating up to 200 bar ( 2900 psi)
Nominal Meter Size DN6 (1/4″)
