CLASSIC Series | TCM 0325 Flow Meters

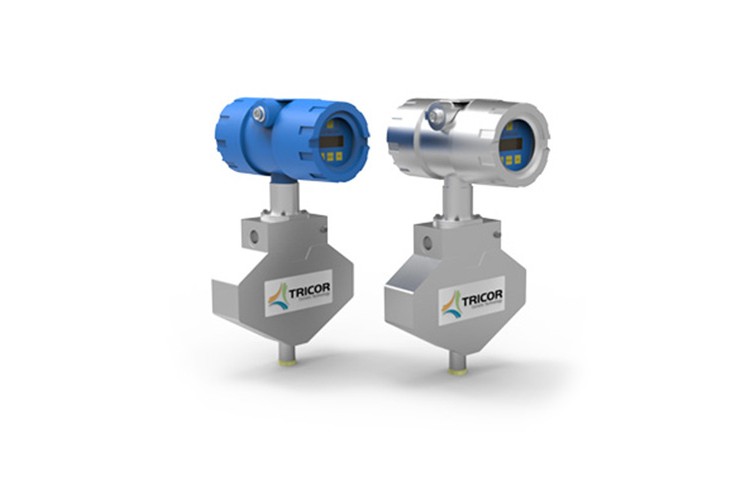

The TRICOR CLASSIC Series TCM 0325 Coriolis Mass Flow Meter has a maximum mass flow rate of 325 kg/hr (12 lb/min) or 49 bbl/day and nominal size of DN4 (1/8"), and is rated for process pressures up to 200 bar (2900 psi). Standard accuracy for the TCM 0325 is 0.3%, but with a custom calibration, 0.1% accuracy is possible. The diamond shape (D-shape) tube design has the best overall performance of any Coriolis tube shape. The mechanical advantages of this design include the best signal-to-noise ratio and reduced effects of external vibrations, thus improving zero stability.

Specs

Key Specifications
Mass Flow Rate (max.) 325 kg/h (12 lb/min)
Volumetric Flow Rate (max.) 325 l/h (1.43 gpm, 49 bbl/d (US))
Pressure Rating 200 bar (2,900 psi)
Nominal Meter Size DN4 (1/8″)
