CLASSIC Series | TCM 0650

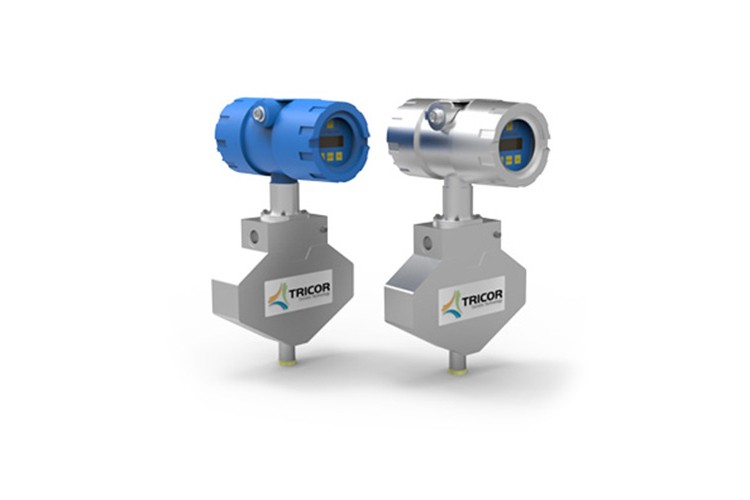

The TRICOR CLASSIC Series TCM 0650 Coriolis Mass Flow Meter has a maximum mass flow rate of 650 kg/hr (24 lb/min) or 98 bbl/day and nominal size of DN4 (1/8"), and is rated for process pressures up to 200 bar (2900 psi). Standard accuracy for the TCM 0650 is 0.3%, but with a custom calibration, 0.1% accuracy is possible. The diamond shape (D-shape) tube design has the best overall performance of any Coriolis tube shape. The mechanical advantages of this design include the best signal-to-noise ratio and reduced effects of external vibrations, thus improving zero stability.
|Mass Flow Rate (max.)||650 kg/h (24 lb/min)|
|Volumetric Flow Rate (max.)||650 l/h (2.86 gpm, 98 bbl/d (US))|
|Standard Pressure Rating||up to 200 bar (2900 psi)|
|Nominal Meter Size||DN4 (1/8″)|
