CLASSIC Series | TCM 3100

star_border View Full Profile

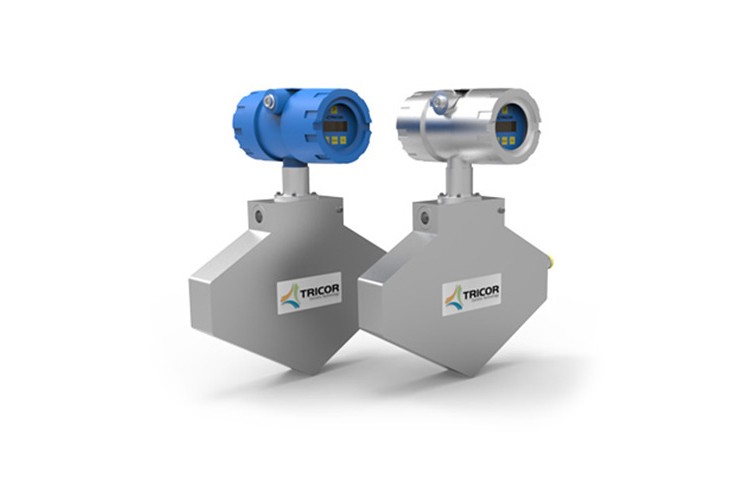

CLASSIC Series | TCM 3100 Flow Meters

The TRICOR CLASSIC Series TCM 3100 Coriolis Mass Flow Meter has a maximum mass flow rate of 3100 kg/hr (114 lb/min) or 468 bbl/day and nominal size of DN6 (1/4"), and is rated for process pressures up to 200 bar (2900 psi). Standard accuracy for the TCM 3100 is 0.3%, but with a custom calibration, 0.1% accuracy is possible. The diamond shape (D-shape) tube design has the best overall performance of any Coriolis tube shape. The mechanical advantages of this design include the best signal-to-noise ratio and reduced effects of external vibrations, thus improving zero stability.

Specs

Key Specifications
Mass Flow Rate (max.) 3100 kg/h (114 lb/min)
Volumetric Flow Rate (max.) 3100 l/h (13.65 gpm, 468 bbl/d (US))
Standard Pressure Rating up to 200 bar (2900 psi)
Nominal Meter Size DN6 (1/4″)
