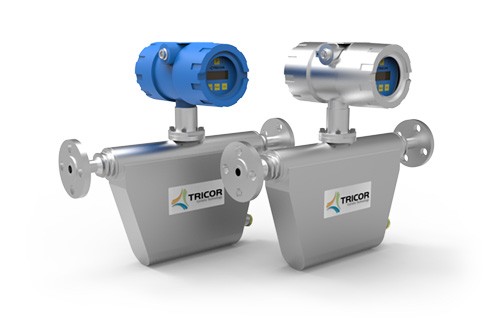

CLASSIC Series | TCM 7900 Flow Meters

The TRICOR CLASSIC Series TCM 7900 Coriolis Mass Flow Meter has a maximum mass flow rate of 7900 kg/hr (290 lb/min) or 1193 bbl/day and nominal size of DN15 (1/2"), and is rated for process pressures up to 100 bar (1450 psi). Standard accuracy for the TCM 7900 is 0.3%, but with a custom calibration, 0.1% accuracy is possible. These meters have good overall accuracy, zero stability, and pressure drop. The simple self-draining U-shape tube design provides for easy cleaning/flushing.


Key Specifications
Mass Flow Rate (max.) 7900 kg/h (290 lb/min)
Volumetric Flow Rate (max.) 7900 l/h (34.78 gpm, 1193 bbl/d (US))
Pressure Rating up to 100 bar (1450 psi)
Nominal Meter Size DN15 (1/2″)
