CLASSIC Series | TCM 028K

star_border View Full Profile
CLASSIC Series | TCM 028K Flow Meters

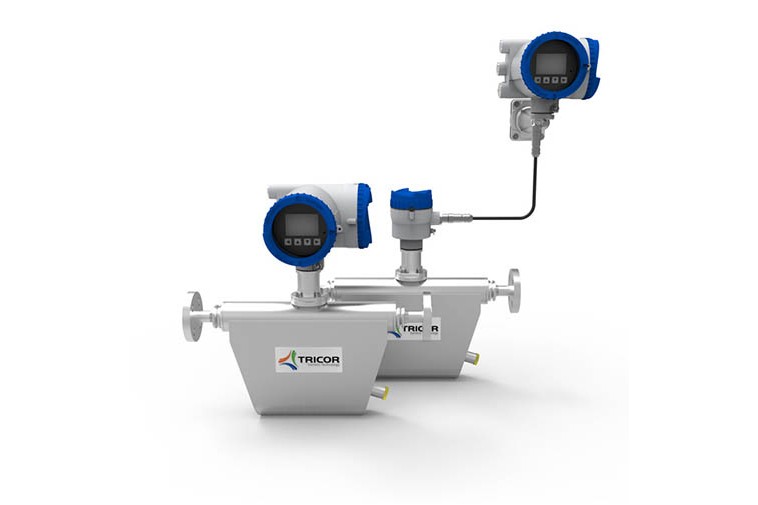

The TRICOR CLASSIC Series TCM 028K Coriolis Mass Flow Meter has a maximum mass flow rate of 28,000 kg/hr (1029 lb/min) or 4227 bbl/day and nominal size of DN25 (1"), and is rated for process pressures up to 100 bar (1450 psi). Standard accuracy for the TCM 028K is 0.3%, but with a custom calibration, 0.1% accuracy is possible. These meters have good overall accuracy, zero stability, and pressure drop. The simple self-draining U-shape tube design provides for easy cleaning/flushing.

Specs

Key Specifications
Mass Flow Rate (max.) 28,000 kg/h (1029 lb/min)
Volumetric Flow Rate (max.) 28,000 l/h (123.3 gpm, 4227 bbl/d (US))
Standard Pressure Rating up to 100 bar (1450 psi)
Nominal Meter Size DN25 (1″)
