TRICOR Coriolis Technology

CLASSIC Series | TCM 065K

Coriolis Mass Flow Meter


CLASSIC Series | TCM 065K

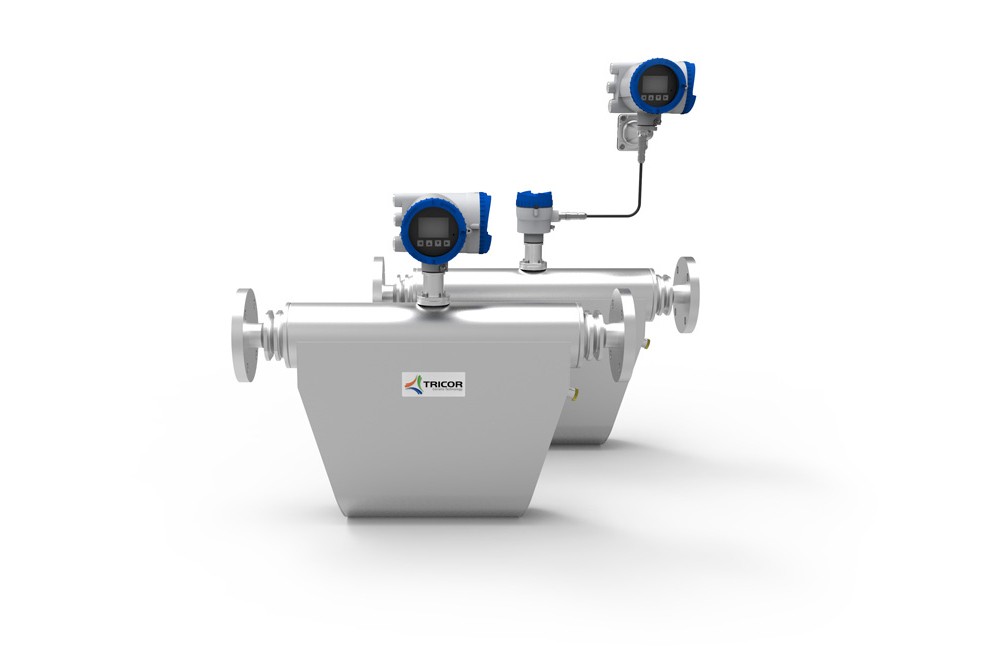

The TRICOR CLASSIC Series TCM 065K Coriolis Mass Flow Meter has a maximum mass flow rate of 65,000 kg/hr (2388 lb/min) or 9812 bbl/day and nominal size of DN50 (2"), and is rated for process pressures up to 100 bar (1450 psi). Standard accuracy for the TCM 065K is 0.3%, but with a custom calibration, 0.1% accuracy is possible. These meters have good overall accuracy, zero stability, and pressure drop. The simple self-draining U-shape tube design provides for easy cleaning/flushing.

VIEW FULL PROFILE

Specs

Key Specifications
Mass Flow Rate (max.) 65,000 kg/h (2388 lb/min)
Volumetric Flow Rate (max.) 65,000 l/h (286.2 gpm, 9812 bbl/d (US))
Pressure Rating up to 100 bar (1450 psi)
Nominal Meter Size DN50 (2″)
