TRICOR Coriolis Technology

CLASSIC Series | TCM 230K

Coriolis Mass Flow Meter


CLASSIC Series | TCM 230K

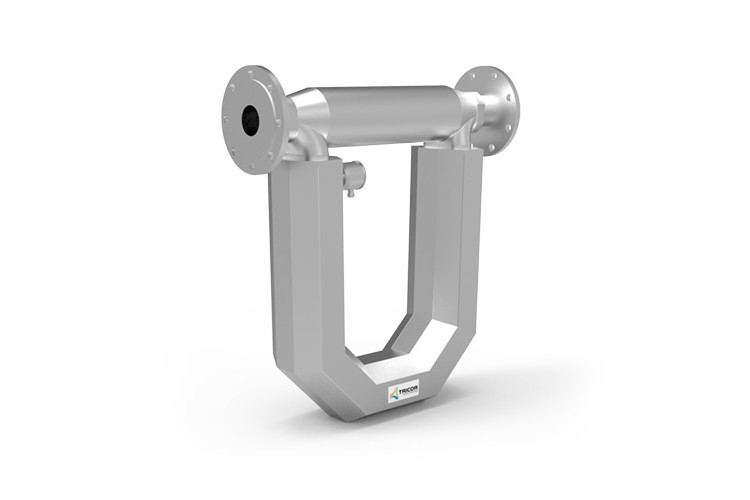

The TRICOR CLASSIC Series TCM 230K Coriolis Mass Flow Meter has a maximum mass flow rate of 230,000 kg/hr (8450 lb/min) or 34,720 bbl/day and nominal size of DN80 (3"), and is rated for process pressures up to 100 bar (1450 psi). Standard accuracy for the TCM 230K is 0.3%, but with a custom calibration, 0.1% accuracy is possible. These meters have good overall accuracy, zero stability, and pressure drop. The simple self-draining U-shape tube design provides for easy cleaning/flushing.

VIEW FULL PROFILE

Specs

Key Specifications
Mass Flow Rate (max.) 230,000 kg/h (8450 lb/min)
Volumetric Flow Rate (max.) 230,000 l/h (1013 gpm, 34,720 bbl/d (US))
Standard Pressure Rating up to 100 bar (1450 psi)
Nominal Meter Size DN80 (3″)
