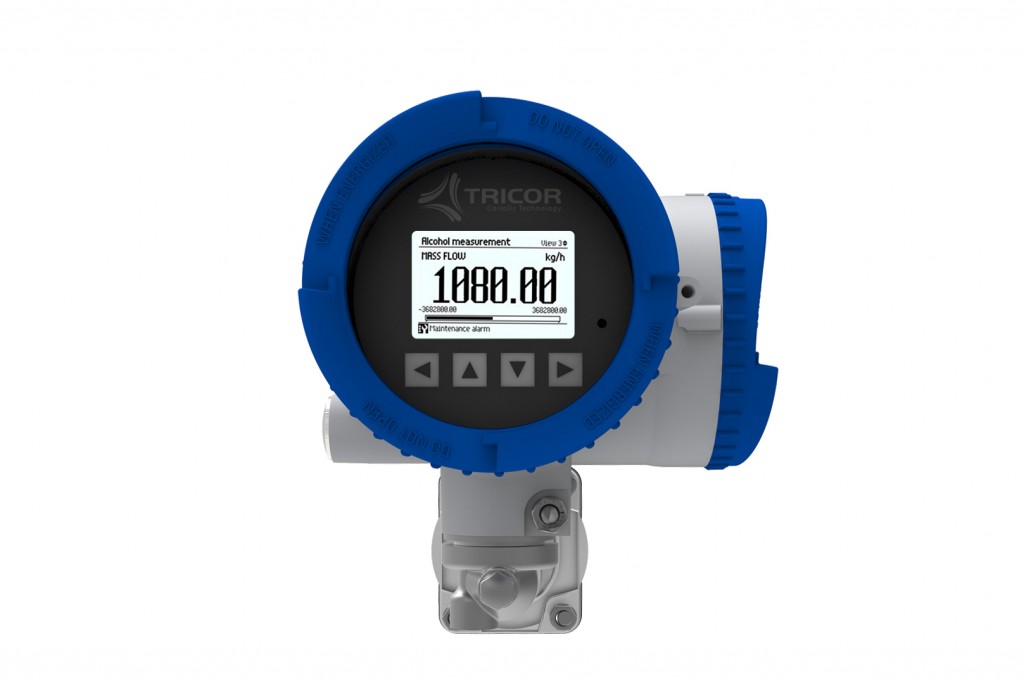

TRICOR Coriolis Technology

TCD 9100 Compact Version

DSP Coriolis Transmitter


TCD 9100 Compact Version

With and user friendly display, the multi-variable DSP Coriolis transmitter can output flow rate, total, density or temperature with full configurable universal input and output possibilities. The DSP offers a robust signal processing for challenging applications. The Compact version enables the direct access to the settings of the meters. It has hazardous area approvals: ATEX, IECEx, cCSAus.

VIEW FULL PROFILE

Specs

Key Specifications
Display 240 x 160 pixels, 6 programmable views
Supply Voltage 20…27 V DC, ±10 % or 100…240 V DC, ±10 %
Power Consumption 7.5 W/15 VA
Interface HART® 7.2, Profibus PA/DP, Modbus® RTU, Slot for one Plug-in I/O Card
Protection Class IP67/NEMA 4X to IEC 529 and DIN 40050 (1 mH20 for 30 min.)
