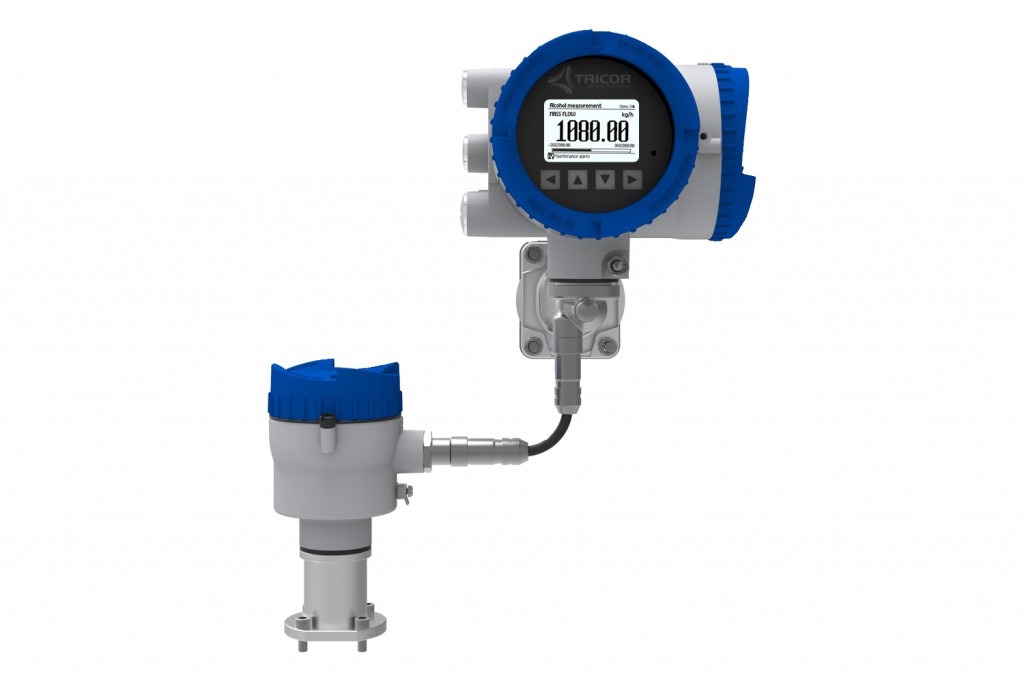

TCD 9200 Remote Version

star_border View Full Profile
0146/36335_en_385f0_38836_tcd-9200-180425-front-screen-180425.jpg

With and user friendly display, the multi-variable DSP Coriolis transmitter can output flow rate, total, density or temperature with full configurable universal input and output possibilities. The DSP offers a robust signal processing for challenging applications. With 200 meter possible cable length the remote version supports remote operation of the Coriolis meter. It has hazardous area approvals: ATEX, IECEx, cCSAus.

Specs

Key Specifications
Display 240 x 160 pixels, 6 programmable views
Supply Voltage 20…27 V DC, ±10 % or 100…240 V DC, ±10 %
Power Consumption 7.5 W/15 VA
Interface HART® 7.2, Profibus PA/DP, Modbus® RTU, Slot for one Plug-in I/O Card
Protection Class IP67/NEMA 4X to IEC 529 and DIN 40050 (1 mH20 for 30 min.)
