NewTek Sensor Solutions

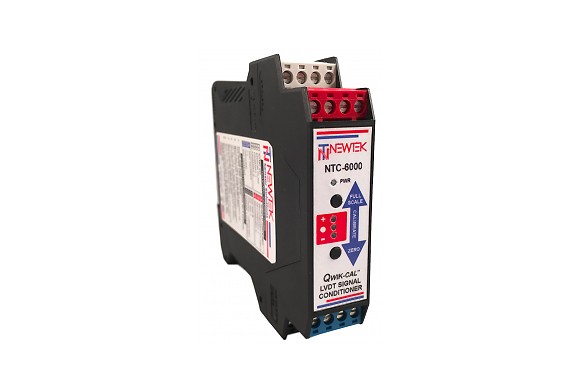

NTC-6000

LVDT Signal Conditioner


NTC-6000

Available in the fall of 2018, the NTC-6000 Qwik-Cal ™ LVDT Signal Conditioner from NewTek Sensor Solutions provides an intuitive AC-LVDT setup process.  Calibration is accomplished with front panel null indicators and pushbuttons to set Zero and Full Scale output positions.  The NTC-6000 offers a choice of excitation frequencies, multiple analog output types, accepts a wide dynamic range of LVDT outputs, indicates LVDT connection failures, and incorporates a 2-wire RS-485 digital communications port.  Along with color-coded plug-in screw terminal connectors and a 2 year warranty, these are just a few of the many advanced features that make NewTek Sensor Solutions NTC-6000 module an extremely versatile smart LVDT signal conditioner.

VIEW FULL PROFILE

Specs

Key Specifications
Input Voltage 9-30 VDC, 90 mA max @ 24 VDC
Voltage Output 0-10 VDC / 0-5 VDC / 0.5-4.5 VDC / ±5 VDC / ±10 VDC (selectable)
Current Output 4 - 20 mADC
Loop resistance 1KΩ Max
Frequency Response 500Hz Max (10KHz Exitation)
Low Pass Filter 1Hz / 10Hz / 100Hz / Full (selectable)
Operating Temperature Range -45°C to 85°C
