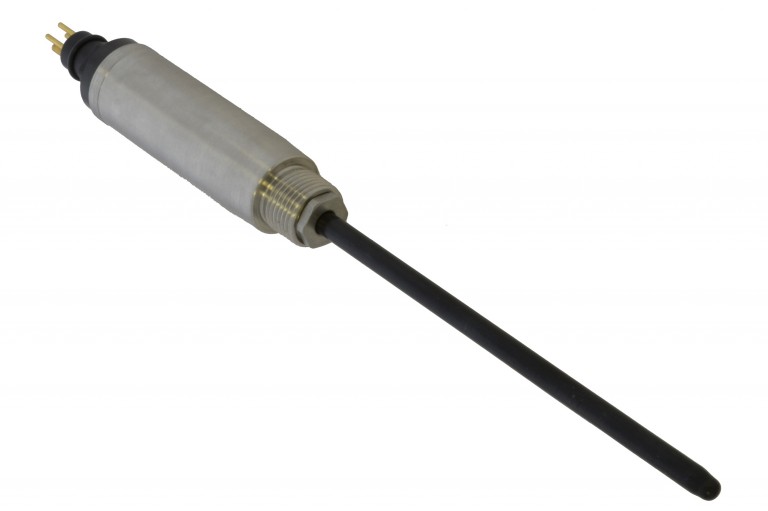

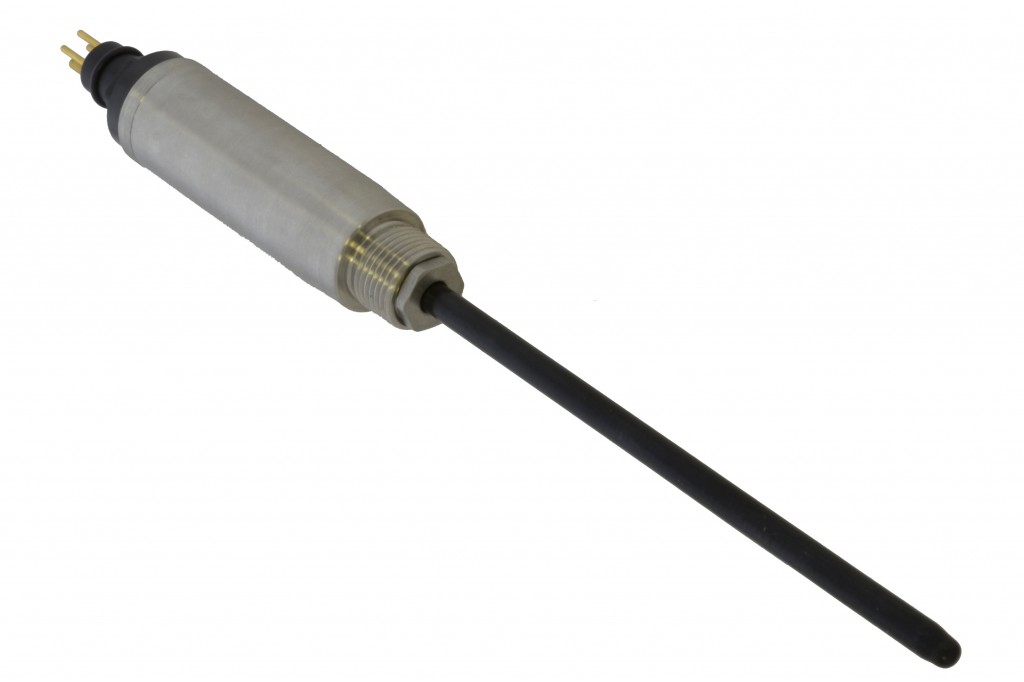

The SS-7 series LVIT (Linear Variable Inductance Transducer) position sensors from Alliance Sensors Group have been designed to give cylinder position feedback in subsea environments with depths up to 12,000 ft or in a PBOF (pressure balanced oil filled) chamber for oil and gas exploration, blow out preventers, ROVs, and relief valves.
|Measuring range||25 mm to 900 mm (1 to 36 inches) Full Scale (nominal)|
|Linearity Error||±0.15% of Full Scale Output (FSO) typical, ± 0.25% of FSO max.|
|Resolution||0.025% of FSO|
|Update Rate||300 Hz nominal|
|Operating Temperature||-20 to 85 C (-40 C to 105 C Extended Range)|
|Operating Pressure||5200 psig max. (350 bar)|
