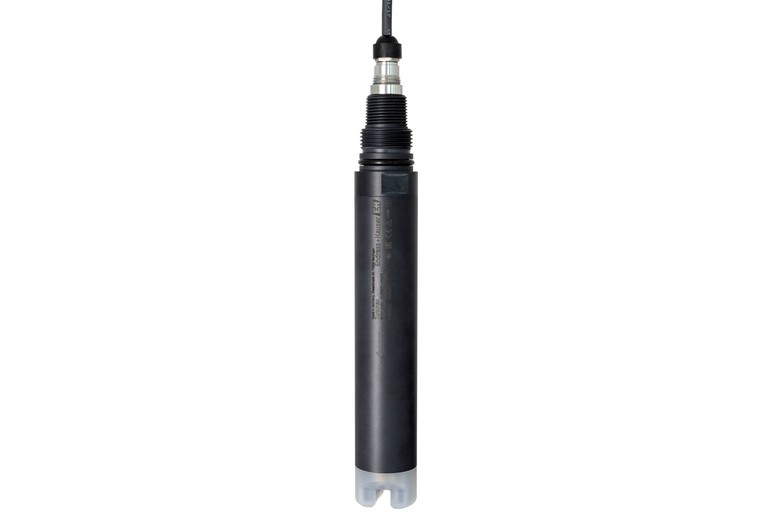

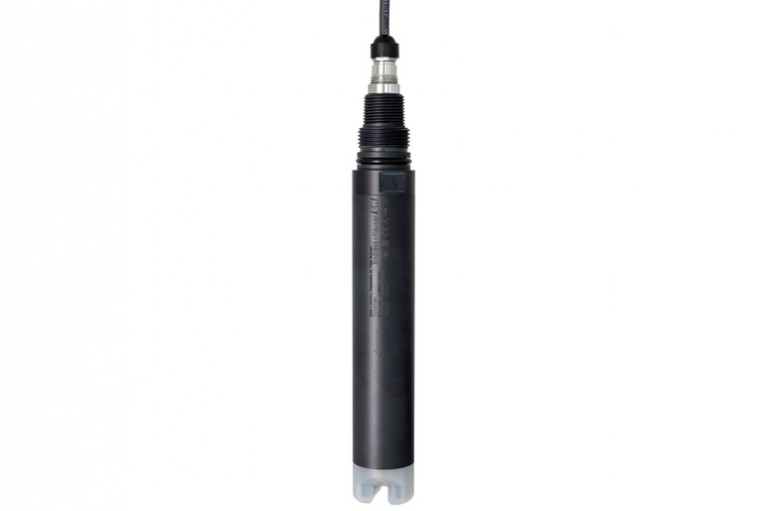

Turbimax CUS50D

Turbidity and suspended solids sensor

Turbimax CUS50D

Memosens sensor for turbidity, suspended solids and absorption measurement.

Turbimax CUS50D is a smart sensor that allows unattended operation in a wide range of industrial wastewater and process applications. Its absorption principle enables single-point-calibration. Choose from different integrated analytical models to adapt the sensor to your specific application. With Memosens digital technology, Turbimax CUS50D combines maximum process and data integrity with simple operation. It resists corrosion and enables lab calibration.



Key Specifications
Measuring principle Absorption
Application Absorption sensor for turbidity and suspended solids measurements in industrial wastewater and processes
Installation Insitu (immersion in process or retractable assembly)
Measurement range 40 to 4 000 FAU, 0 to 60 g/L suspended solids, 0 to 10 OD
Measuring principle Absorption
Design 40 mm sensor
Material Sensor head: PCTFE, Sensor shaft: 1.4571 stainless steel (316TI) or plastic (PPS GF40), O-ring: EPDM
