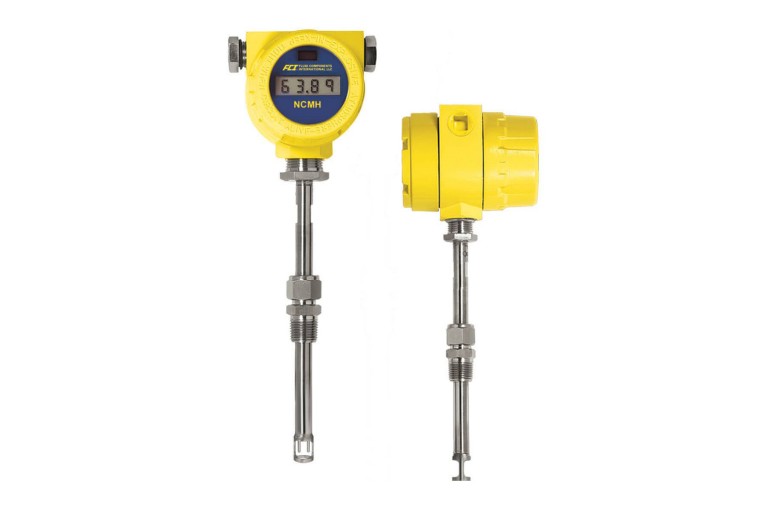

Fluid Components International - ST51/ST51A Flow Meters

The Model ST51 and ST51A are a compact, low cost solution for accurate, repeatable flow measurement of biogas, digester gas, landfill gas, methane and natural gas as well as air, compressed air or nitrogen. This insertion-style flow meter has no moving parts and is available in probe lengths for installation into pipe diameters from 2.5 inches to 24 inches [63 mm to 610 mm]. It is easily connected into the pipe via a 1/2 inch or 3/4 inch NPT compression fitting. ST51 uses constant power thermal dispersion drive technology, with a slightly heated sensor, which uniquely provides a subtle drying effect on the sensors that results in effective measurement in moist gas applications.


Key Specifications
Process operating temperature To 250°F [to 121°C] - To 350°F [to 177°C]
Maximum remote distance 50' [15 m] - 100' [30 m]
Pipe/Line Size Compatibility 2 1/2" to 24" [64 mm to 610 mm]
Flow Rate 0.3 SFPS to 400 SFPS [0,08 MPS to 122 MPS]
