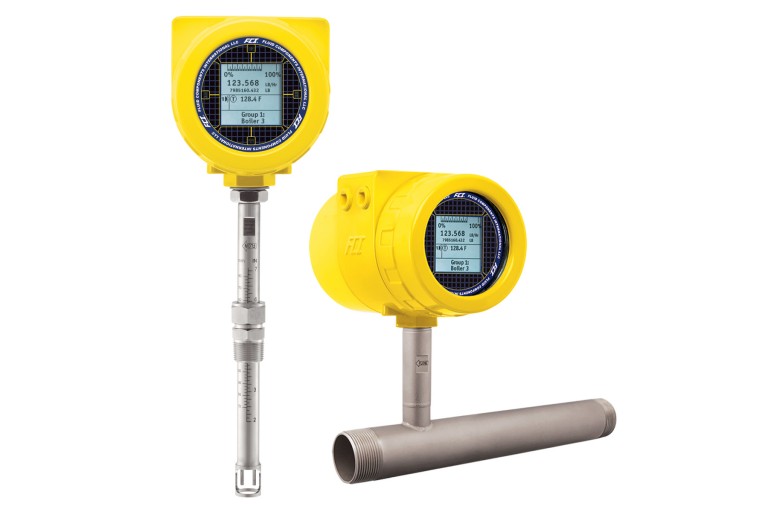

Fluid Components International - ST80/ST80L Flow Meters

ST80 is a high performance, rugged thermal dispersion technology air/gas flow meter that combines ultra-reliable, feature-rich electronics with the industry's most extensive selection of application-matched flow sensors to provide a truly superior solution for industrial processes and plant applications. The ST80 further combines these features with a robust, rugged transmitter enclosure and industry's broadest selection of process connections to provide longest service life and ease-of-installation in your installation's pipe or duct.

The ST80 Series transmitter's outputs are a match to your DCS, PLC, SCADA, recorder, or alarm system.  Whether your output needs are traditional 4-20 mA analog or advanced digital bus communications such as HART, Foundation Fieldbus, PROFIBUS, or Modbus, ST80 has you covered.  Then for local display, the ST80's graphical, backlit LCD is unmatched in showing what's happening in the pipe.  Flow rate, totalized flow, and temperature are continuously displayed in both a digital and bar graph presentation, while alarms and/or diagnostic messages will display as needed to alert operators.


Key Specifications
Measuring Capability Flow rate, total flow and temperature
Accuracy: Flow ± 1.0% reading, ± 0.5% full scale
Temperature Measurement Range Up to 850°F [454°C] commensurate with element; see Operating Temperature in Flow Element specification
Repeatability: Flow ± 0.5% reading
Response Time (Flow) 1 sec. to 63% of final value (1 step change) typical with -FP or -FPC type flow element operating in AST™ mode
