NewTek Sensor Solutions - M-188 Series Sensors

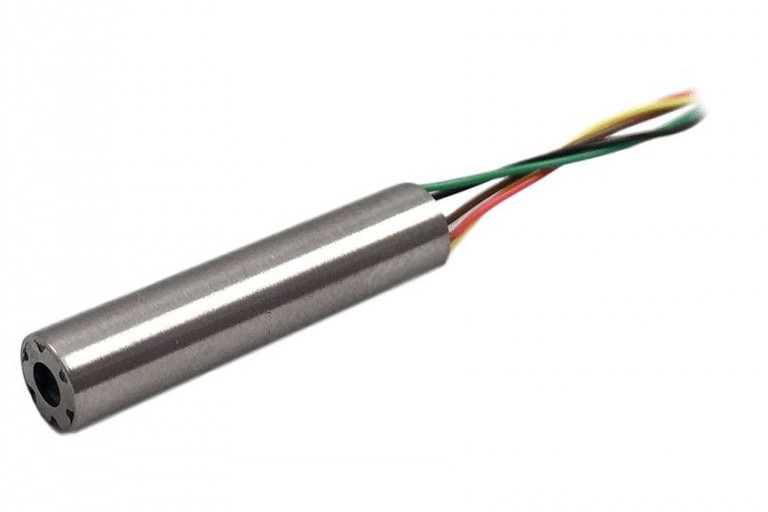

The NewTek N-188 series sub-miniature AC LVDT delivers high quality position measurements in locations where space is limited.   It has a 0.188 inch (4.77 mm) diameter housing and available in several measuring ranges with customization options available.   The sub-miniature size brings all the benefits of LVDT measurement technology such as infinite resolution, superior repeatability and hysteresis, and operation across wide temperature and pressure ranges to applications with tight space restrictions.

Specs

Key Specifications
Input Voltage 1 Vrms (Nominal)
Input Frequency 2.5 kHz to 10 kHz
Linearity < ± 0.25% Full Range Typical
Extended Operating Range 1.5 X Linear Range
Operating Temperature -65° F to 275° F (-55° C to 135° C)

Company Info

7300 US Route 130 North
Pennsauken, NJ
US, 08110

Website:
newteksensors.com
