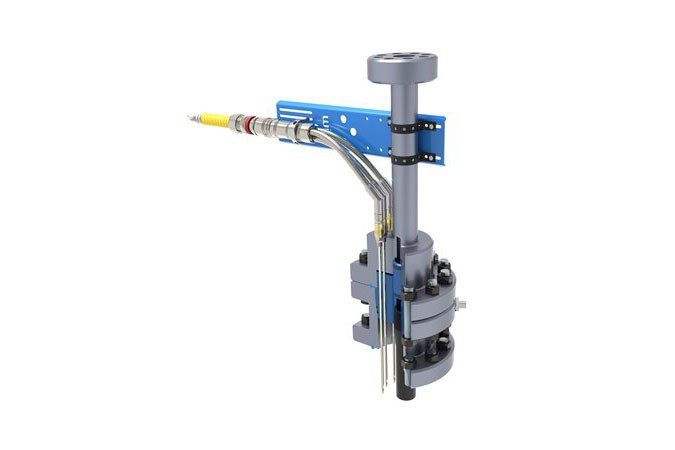

The Tri-Lok 3-Bore Wellhead Penetrator Systems are designed to provide safe and reliable ESP power transfer through wellheads with minimal space. The design of these systems are ideal for concentric wellheads, with or without bonnets, where there is not enough room for a standard mandrel system. The Tri-Lok System also provides the ultimate safety, offering a complete pressure block and cable termination in the wellhead.
The Tri-Lok 3-Bore Wellhead Penetrator System now comes with an improved surface connector making it the most flexible and easiest to install 3-Bore product on the market. The new BIW Quick-Thread™ Technology connection does away with tedious wrench turns. The flexible leads make installation easy even in the tightest locations and can be retrofitted to the surface cable in place. The new higher rating of 160 Amperes enables use of this product with larger motors. The surface connector is available in field attachable or cable-molded configurations and is ATEX approved for hazardous locations and is CSA C1D2 certified.
|Environmental||300°F (149°C), 5000 psi|
|Electrical||5000 VAC, 20 to 120Hz 160 Amperes|
|Approvals||ATEX approved for hazardous locations|
